4X4 SNORKEL suitable for the Toyota 71, 73, 75, 78 & 79 series Narrow Front Landcruiser 01/1985 - 03/2007 4.5L Petrol 1FZ-FE

Safari Part Number: SS75HFE

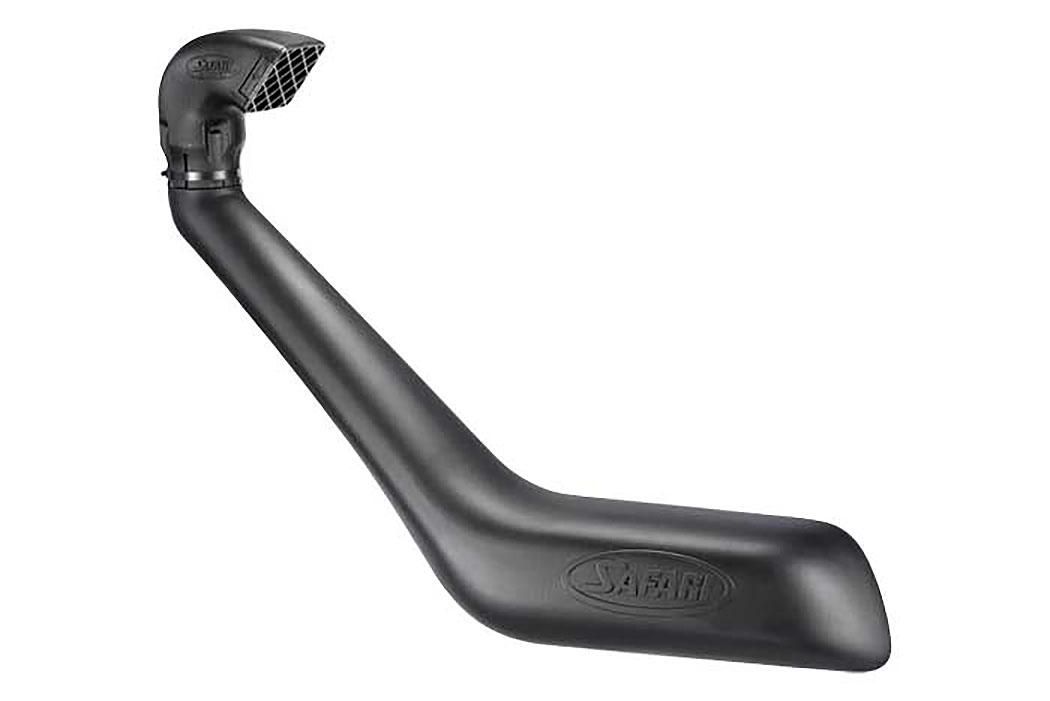

Safari Snorkel

The SS75HFE Safari Snorkelk suitable for Toyota 71, 73, 75, 78 & 79 Series Narrow Front Landcruiser 4x4 is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of 01/1985 - 03/2007 4.5L Petrol 1FZ-FE engines.

With the huge air flow demands of each engine in the Toyota 01/1985 - 03/2007 4.5L Petrol 1FZ-FE 71, 73, 75, 78 & 79 Series Narrow Front Landcruiser, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.

Huge air flow is but one aspect of the ultimate in snorkel design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.

The genuine Safari Snorkel suitable for Toyota 71, 73, 75, 78 & 79 Series Narrow Front Landcruiser 4x4 is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the snorkel breezes through the toughest off-road conditions on the planet.

Safari Snorkel suitable for Toyota 71, 73, 75, 78 & 79 Series Narrow Front Landcruiser 4x4 Features

  • Safari Automotive Australian designed, moulded and manufactured
  • Raised air intake to prevent your engine from ingesting harmful elements
  • Increased airflow for your 01/1985 - 03/2007 4.5L Petrol 1FZ-FE engine
  • Water separating air ram design to remove water from the air stream
  • Durable and UV stable snorkel and air ram for added strength
  • Comprehensive Snorkel fitting guide suitable for Toyota 71, 73, 75, 78 & 79 Series Narrow Front Landcruiser 4WD with an accurate template for assisting with installation.

Safari Snorkel suitable for Toyota 71, 73, 75, 78 & 79 Series Narrow Front Landcruiser 4x4 Kit - Parts List

Safari Snorkel suitable for Toyota 4x4 Part Number SS75HFE

ss75hfe ss75re toyota 71 73 75 78 79 series narrow front landcruiser snorkel kit

Actual model not shown.

ITEMPART NO.
DESCRIPTION
QTY
1 330-133-400R BODY - SNORKEL 1
2 000-135-050 3" AIR RAM ASSEMBLY 1
3 330-032-000 BRACKET - UPPER MOUNTING 1
4 000-002-100 BOLT - HEX – 6mm x 1.0 x 12mm 2
5 000-960 CLIP - BODY - PLASTIC 3
6 000-951 SCREW - S/T - 4.2 x 13mm 3
7 000-110 STUD - S/S – 8mm x 1.25 x 25mm - O/L 4
8 000-311-300 WASHER - BODY – 8mm x 30mm 4
9 000-205-300 NUT - NYLOC – 8mm x 1.25 4
10 000-958 POP RIVET – 4mm x 12mm 6
11 000-959-400 PLUG - PLASTIC – 80mm 1
12 000-907 CLAMP - HOSE - 60/80 1
13 330-023-200 ADAPTOR - AIR CLEANER ENTRY 1
14 000-470-029 "O" RING – 8mm SECTION x 290mm 1
15 330-017-200 TEMPLATE 1
16 000-918/B HOSE CLAMP - SIZE 48 (BLACK) 1

Safari Snorkel Installation Guide

SS75HFE Safari Snorkel suitable for Toyota Toyota 71, 73, 75, 78 & 79 Series Narrow Front Landcruiser 01/1985 - 03/2007 4.5L Petrol 1FZ-FE

Safari Snorkel suitable for Toyota 71, 73, 75, 78 & 79 Series Narrow Front Landcruiser 4x4 for 01/1985 - 03/2007 4.5L Petrol 1FZ-FE Models
