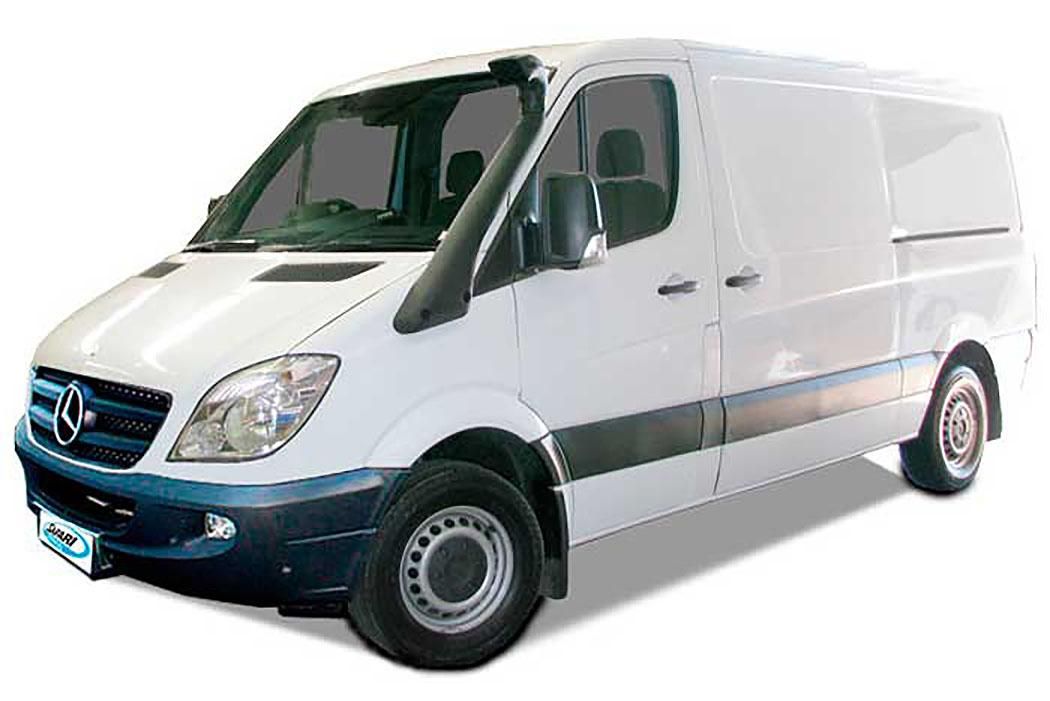

ss96hf snorkel mercedes sprinter

4X4 SNORKEL for the Mercedes Sprinter 2006 - 2013 All Engines

Safari Part Number: SS96HF

Safari Snorkel

The SS96HF Mercedes Sprinter 4x4 Snorkel is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of 2006 - 2013 All engines.

With the huge air flow demands of each engine in the 2006 - 2013 Mercedes Sprinter, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.

Huge air flow is but one aspect of the ultimate in snorkel Mercedes Sprinter design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.

The genuine Safari Mercedes Sprinter 4x4 Snorkel body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the Mercedes Sprinter snorkel breezes through the toughest off-road conditions on the planet.

Safari Mercedes Sprinter 4x4 Snorkel Features

  • Safari Automotive Australian designed, moulded and manufactured
  • Raised air intake to prevent your engine from ingesting harmful elements
  • Increased airflow for your Sprinter 2006 - 2013 engine
  • Water separating air ram design to remove water from the air stream
  • Durable and UV stable snorkel and air ram for added strength
  • Comprehensive Mercedes Sprinter 4WD Snorkel fitting guide with an accurate template for assisting with installation.

Safari Snorkel Mercedes Sprinter 4x4 Kit - Parts List

Mercedes Sprinter 4WD Snorkel for 02006 - 2013 All Engine Models - Safari Automotive Mercedes Sprinter 4x4 Snorkel Part Number SS96HF

ss96hf mercedes sprinter snorkel kit

Actual model not shown.

ITEMPART NO.
DESCRIPTION
QTY
1 905-133-000 BODY - SNORKEL (SS95HF) 1
2 000-135-800 3.5” AIR RAM ASSEMBLY 1
3 905-032-000 BRACKET - UPPER MOUNTING 1
4 000-002-100 BOLT - HEX - 6mm x 1.0 x 14mm (SEMS) 2
5 000-954-100 RIVNUT - 4.0mm x 0.7 x 10.8mm 3
6 000-093-300 BOLT - B/H - 4.0 x 0.7 x 12.0mm - S/S 3
7 000-954-200 RIVNUT - 6.0mm x 1.0 x 14.5mm 2
8 000-347 WASHER - BODY - 9mm x 31.8mm - S/S 2
9 000-1038-300 BOLT - S/H - 6.0 x 1.0 x 35mm - S/S 2
10 000-353 WASHER - BODY - 6mm x 18mm - S/S 2
11 905-024-100 HOSE - SNORKEL OUTLET 1
12 485-025-000 JOINER - 90mm OD x 60mm LONG 1
13 905-024-300 HOSE - AIR CLEANER ENTRY 1
14 000-987-550 CABLE TIE – 8mm x 550mm 1
15 000-910 CLAMP - HOSE - 90/110mm 4
16 000-914/B CLAMP - HOSE - SIZE 56 (BLACK) 1
17 905-017-000 TEMPLATE - GUARD PANEL 1

Safari Snorkel Installation Guide

picture_as_pdfMercedes Sprinter 2006 - 2013 All Engines 1.02 MB
