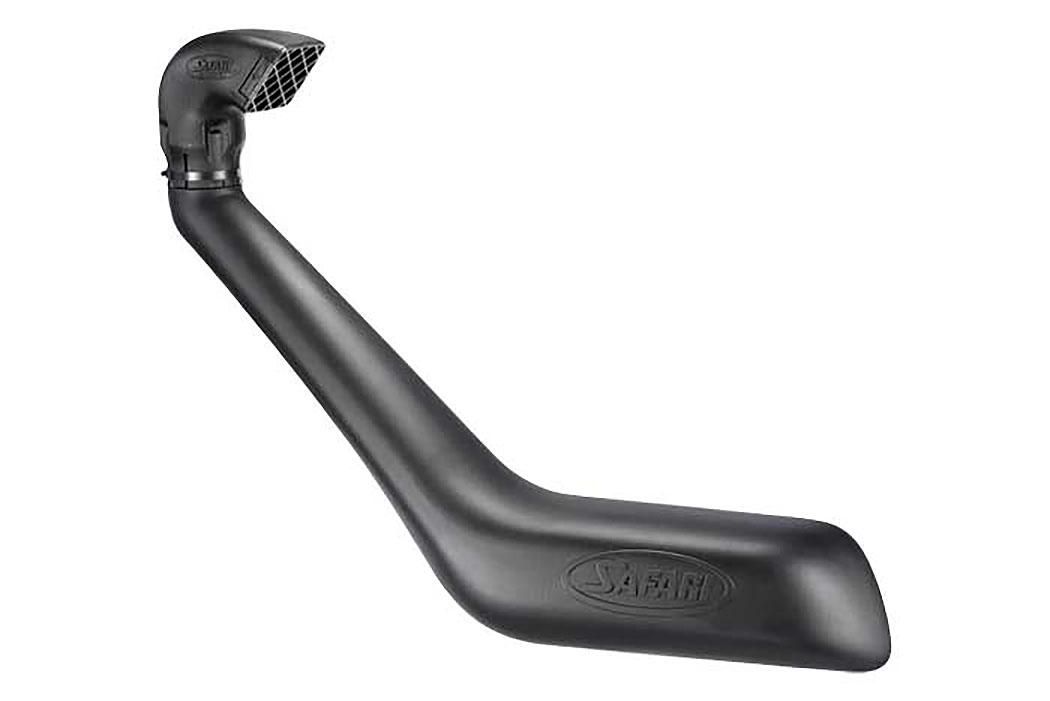

The SS155HF GM/Isuzu Rodeo/Campo Snorkel is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of R9 01/2002 - 12/2002 3.0L Diesel engines.
With the huge air flow demands of each engine in the GM/Isuzu R9 01/2002 - 12/2002 3.0L Diesel Rodeo/Campo, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.
Huge air flow is but one aspect of the ultimate in snorkel GM/Isuzu Rodeo/Campo design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.
The genuine Safari GM/Isuzu Rodeo/Campo 4x4 Snorkel body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the GM/Isuzu Rodeo/Campo snorkel breezes through the toughest off-road conditions on the planet.
GM/Isuzu Rodeo/Campo 4WD Snorkel for R9 01/2002 - 12/2002 3.0L Diesel Models - Safari Automotive GM/Isuzu Rodeo/Campo 4x4 Snorkel Part Number SS155HF
ITEM | PART NO. | DESCRIPTION | QTY |
---|---|---|---|
1 | 720-133-000R | BODY – SNORKEL | 1 |
2 | 000-135-050 | 3” AIR RAM ASSEMBLY | 1 |
3 | 720-032-000 | BRACKET - UPPER MOUNTING | 1 |
4 | 720-023-000 | DUCT - AIR ENTRY | 1 |
5 | 000-110 | STUD-S/S 8mm x 1.25mm x 25mm O/L | 5 |
6 | 000-311-300 | WASHER-BODY 8mm x 30mm S/S | 5 |
7 | 000-205-300 | NUT - NYLOC 8mm x 1.25mm S/S | 5 |
8 | 000-001 | BOLT - HEX 6mm x 1.0mm x 12mm | 1 |
9 | 000-304 | WASHER - STAR 6mm | 1 |
10 | 000-002-100 | BOLT - HEX 6mm x 14mm | 3 |
11 | 000-960 | CLIP - BODY (PLASTIC) | 4 |
12 | 000-951 | SCREW - S/T 4.2mm x 13mm S/S | 4 |
13 | 000-906 | CLAMP - HOSE 50/70mm | 2 |
14 | 000-800-225E | HOSE - JOINER 60mm ID x 57mm | 1 |
15 | 720-017-000 | TEMPLATE | 1 |
16 | 000-321 | WASHER-BODY 6mm x 20mm | 1 |
17 | 000-918/B | HOSE CLAMP - SIZE 48 (BLACK) | 1 |
18 | 000-958-400 | POP RIVET - 4.8mm x 21mm | 1 |
GM/Isuzu Rodeo/Campo R9 01/2002 - 12/2002 3.0L Diesel 471.56 KB
