MY2024 FACELIFT

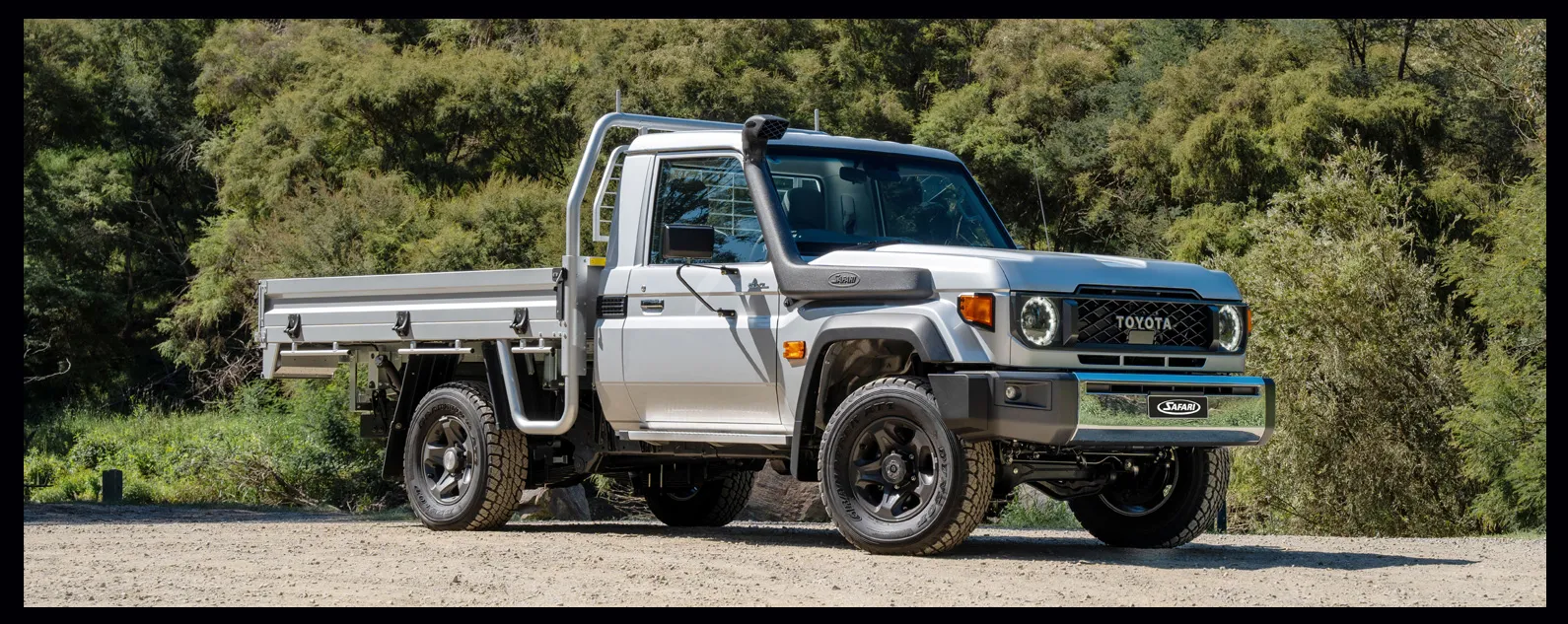

TOYOTA 70 SERIES

4.5L V8 DIESEL 1VD-FTV
(09/23 - Onwards)

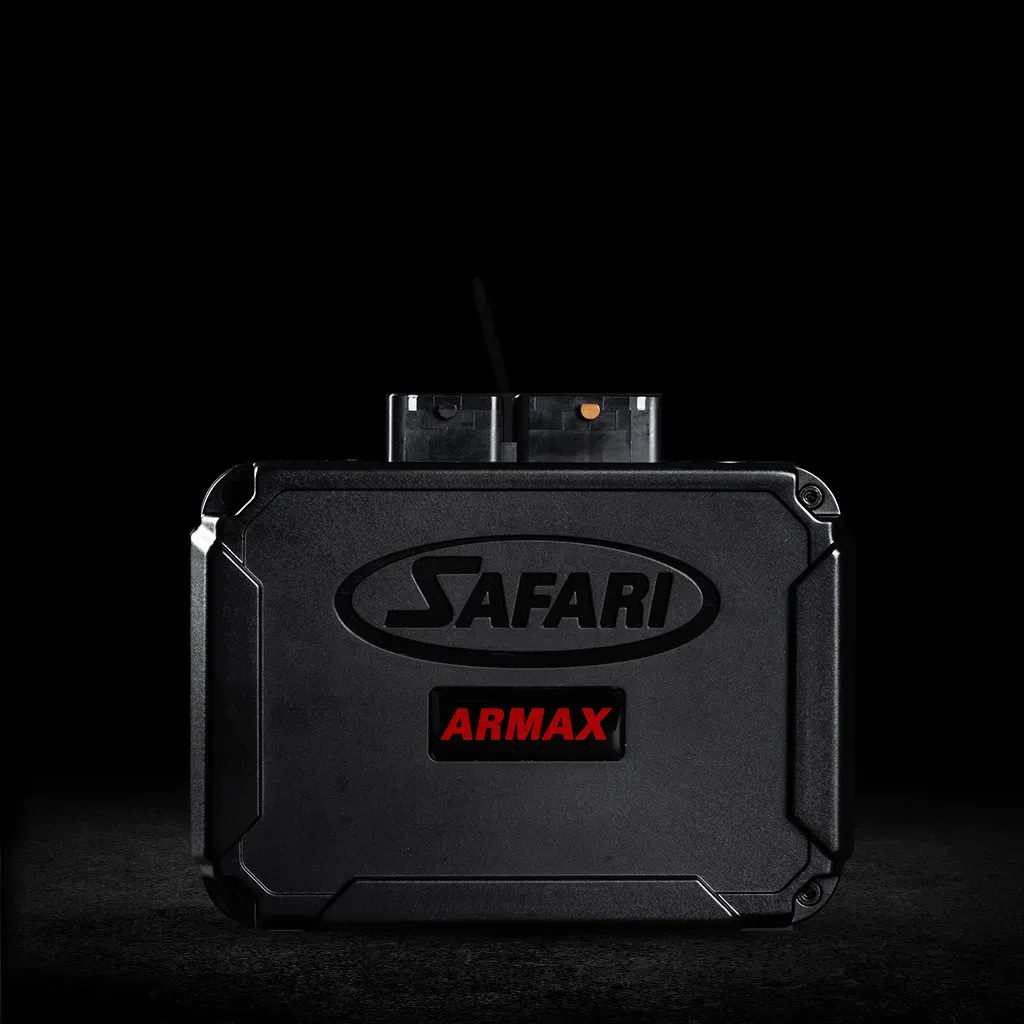

Armax ECU

Safari Part Number: SMPVDJ70M

The Safari ARMAX Engine Control Unit (ECU) is designed to work harmoniously with your vehicles OE Engine Control Unit resulting in more power, more torque, better throttle response, less fuel consumption and less turbo lag.

This is all backed up by Safari’s sophisticated engine protection systems which are constantly live monitoring your vehicle for total drivetrain safety and ultimate reliability.


  • IP68 rated for water and particle ingress
  • 5-way map selection switch for different driving modes
  • Engine & drivetrain protection systems such as EGT control and torque reduction on gear change
  • OE Style wiring harness with gold plated terminals and IP rated connectors
  • Extensive library of calibration files to suit most popular aftermarket performance upgrades
  • Reduced fuel consumption
  • Designed, engineered and manufactured in Australia
  • Remote access for support and updates
  • Product and Engine/Drivetrain warranty

70 Series 1VD-FTV ECU Feature

  • Direct Variable Vane Control (DVVC)
  • Increased Low RPM Power and Torque
  • Reduced Turbo Lag
  • Increased Throttle Response
  • Reduced Fuel Consumption
  • Diesel Particulate Filter (DPF) Compatible
  • Retains ARMAX Engine and Drivetrain Warranty*

What is Direct Torque?

The DirectTorque feature is designed specifically for the 70 Series V8 Landcruiser where the ARMAX Engine Control Unit (ECU) takes direct control of the engines Turbocharger, allowing the engines torque curve to be altered without restriction.

The ARMAX ECU optimises the engines boost delivery to ensure strong delivery of Low RPM power and torque. Additional benefits are reduced turbo lag, improved throttle response and reduced fuel consumption. Suits both DPF equipped and Non-DPF models.

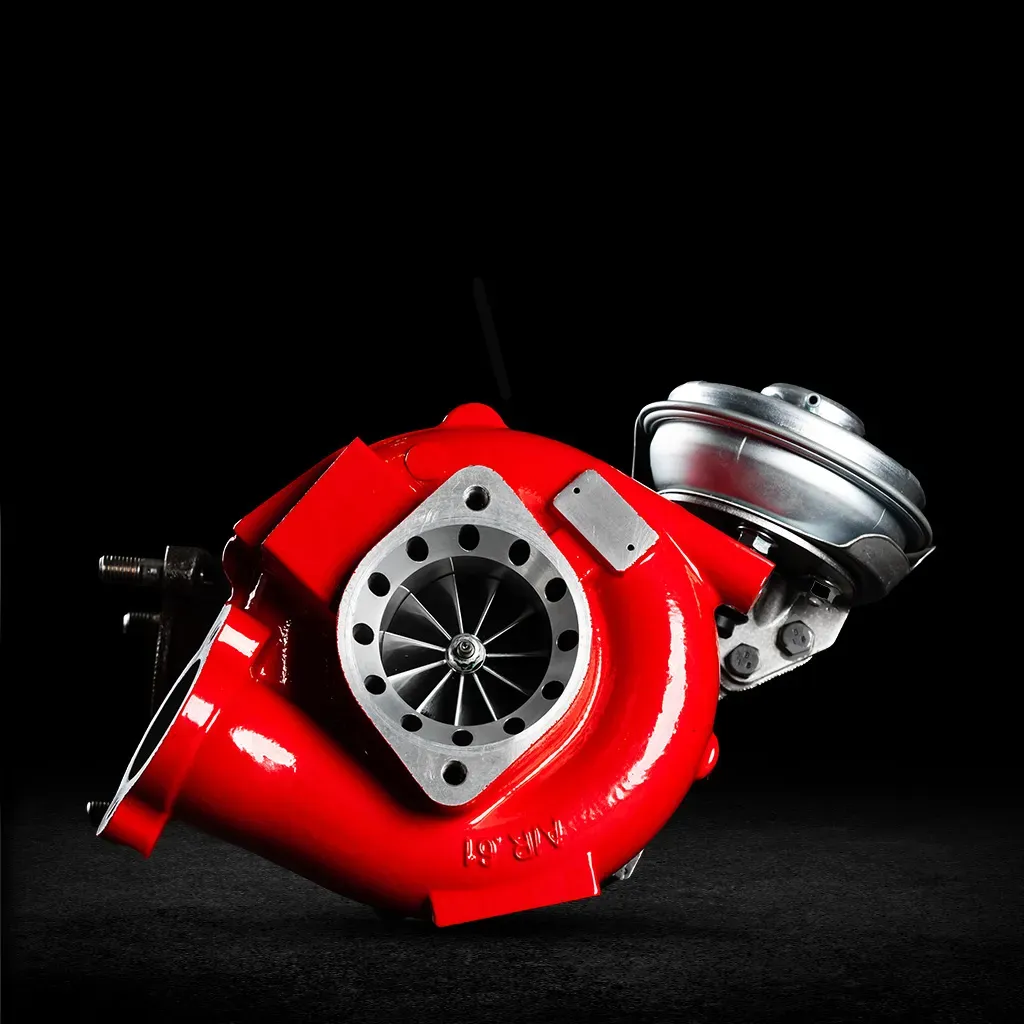

ARMAX TURBO

Safari Part Number: STVDJ70W350

The professionally developed and engineered Safari ARMAX Turbocharger for Toyota’s 1VD-FTV diesel engine delivers amazing performance. The Safari ARMAX Turbocharger is designed to restore lost performance by allowing a larger air capacity through the turbocharger, in turn, offering an increase in engine power.


  • 25% increased capacity over OE Turbocharger
  • Wider compressor map for improved performance
  • Billet Compressor Wheel
  • Surge Slotted Compressor Housing
  • Internal Ball bearing with 360° thrust assembly
  • Direct bolt on
  • Retains ARMAX Engine and drivetrain warranty*

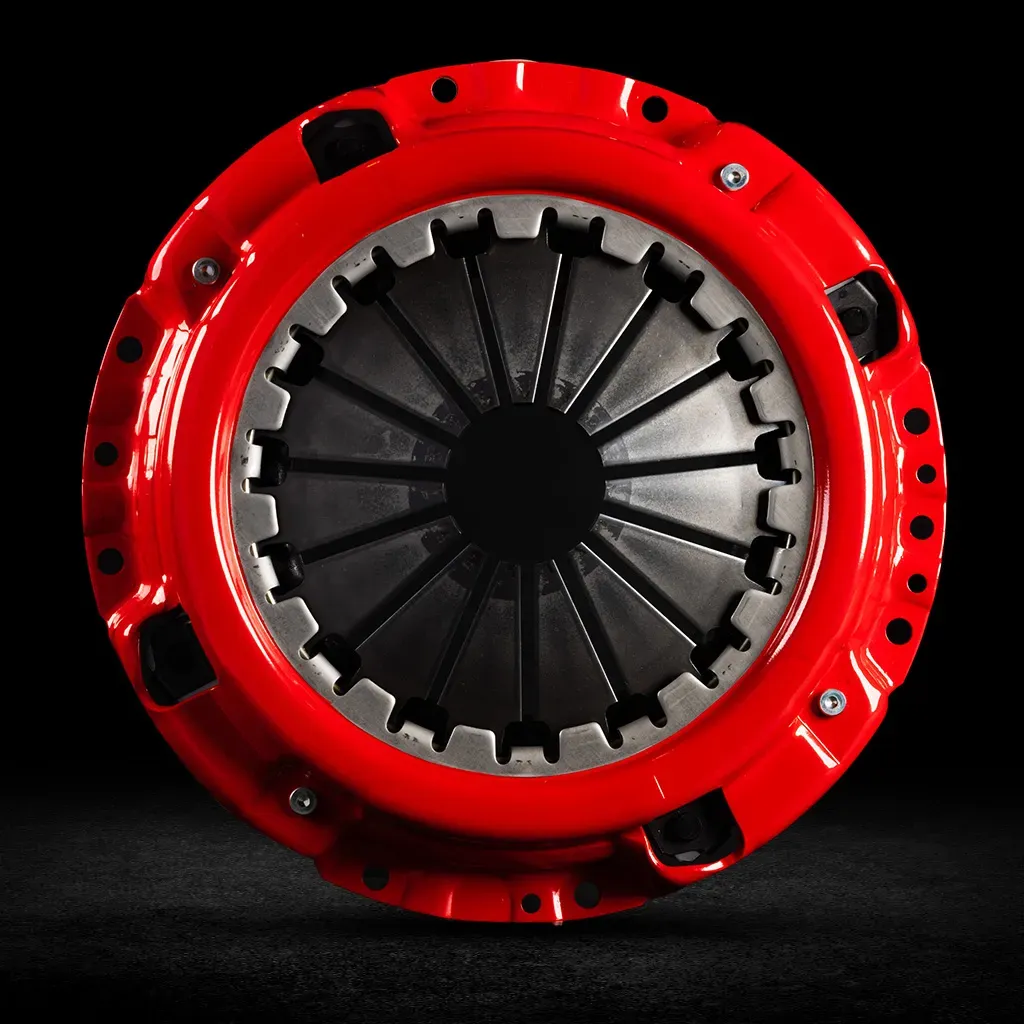

Armax CLUTCH

Safari Part Number: SDVDJ70CHD

The stock Toyota clutch is very robust and well matched to the torque output of a 1VD-FTV engine and intended use of the vehicle up to standard GVM and power levels.

In performance and/or increased GVM applications, the engine demands substantial improvement in clutch performance. Safari have engineered a replacement clutch rated to 1100nm of torque which provides a 250% increase in torque capacity whilst maintaining stock driveability characteristics.


  • 1100Nm (250%) Increased Torque Capacity
  • Designed for increased power, torque and high GVM applications
  • Long service life maintains torque capacity within 10% over the wear rate
  • of the clutch disc
  • Standard vehicle pedal feel with improved diaphragm lift control
  • Safari ARMAX slave cylinder
  • OE drive characteristics
  • 12 months 20,000km product warranty
  • Safari ARMAX Engine & Drivetrain warranty*

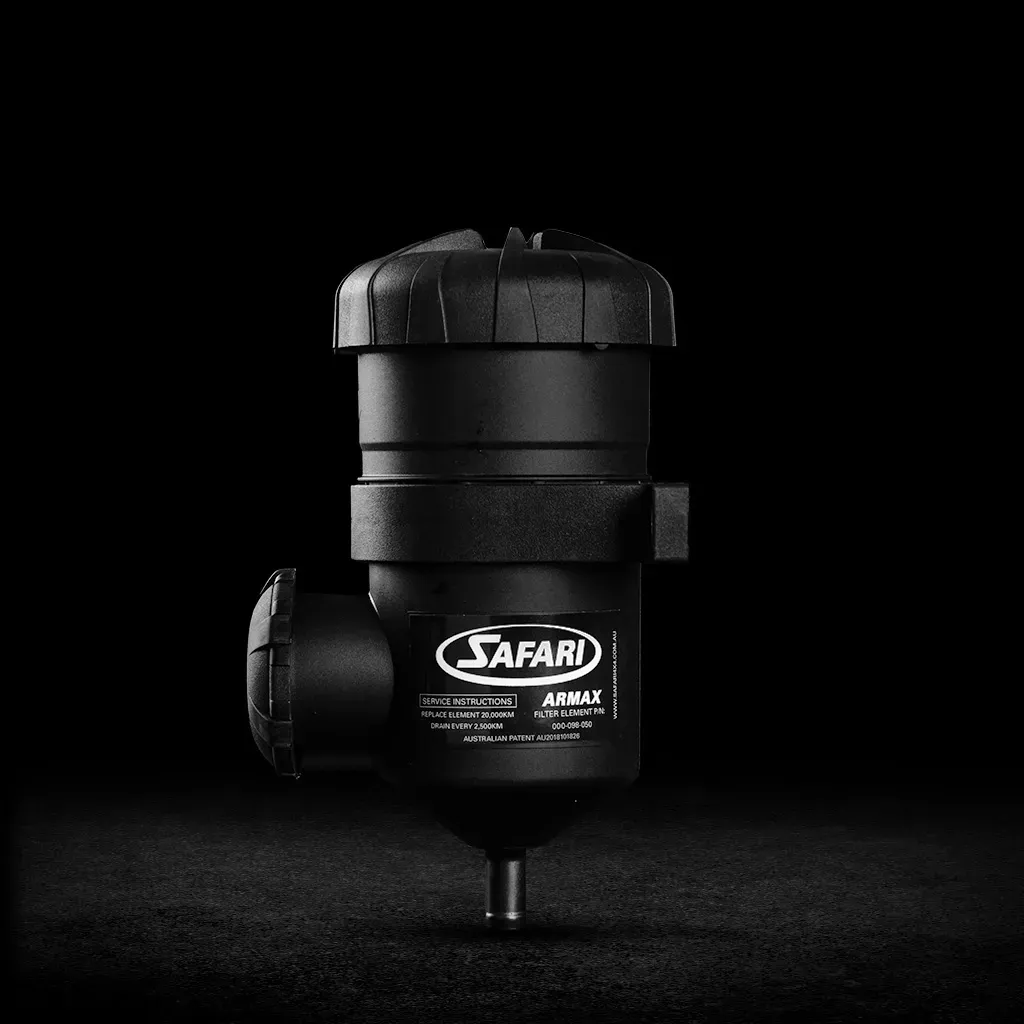

ARMAX OIL SEPARATOR

Safari Part Number: SOSVDJ70

Clean charge air to an engine’s intake is critical for maximising performance and fuel economy. The Safari Oil to Air Separator is designed to remove oil particles that enter the intake charge air. Oil Vapour separation prevents the build-up of soot in the vehicle’s air intake manifold and critical engine components are kept clean.


  • Crank case oil vapour separation
  • Reduces intake carbon build up
  • Allows clean air delivery to engine
  • Improves performance and fuel consumption
  • Reduced engine oil contamination
  • Reduces intercooler outlet temperatures
  • Serviceable filter
  • Fully sealed and internally bypassed

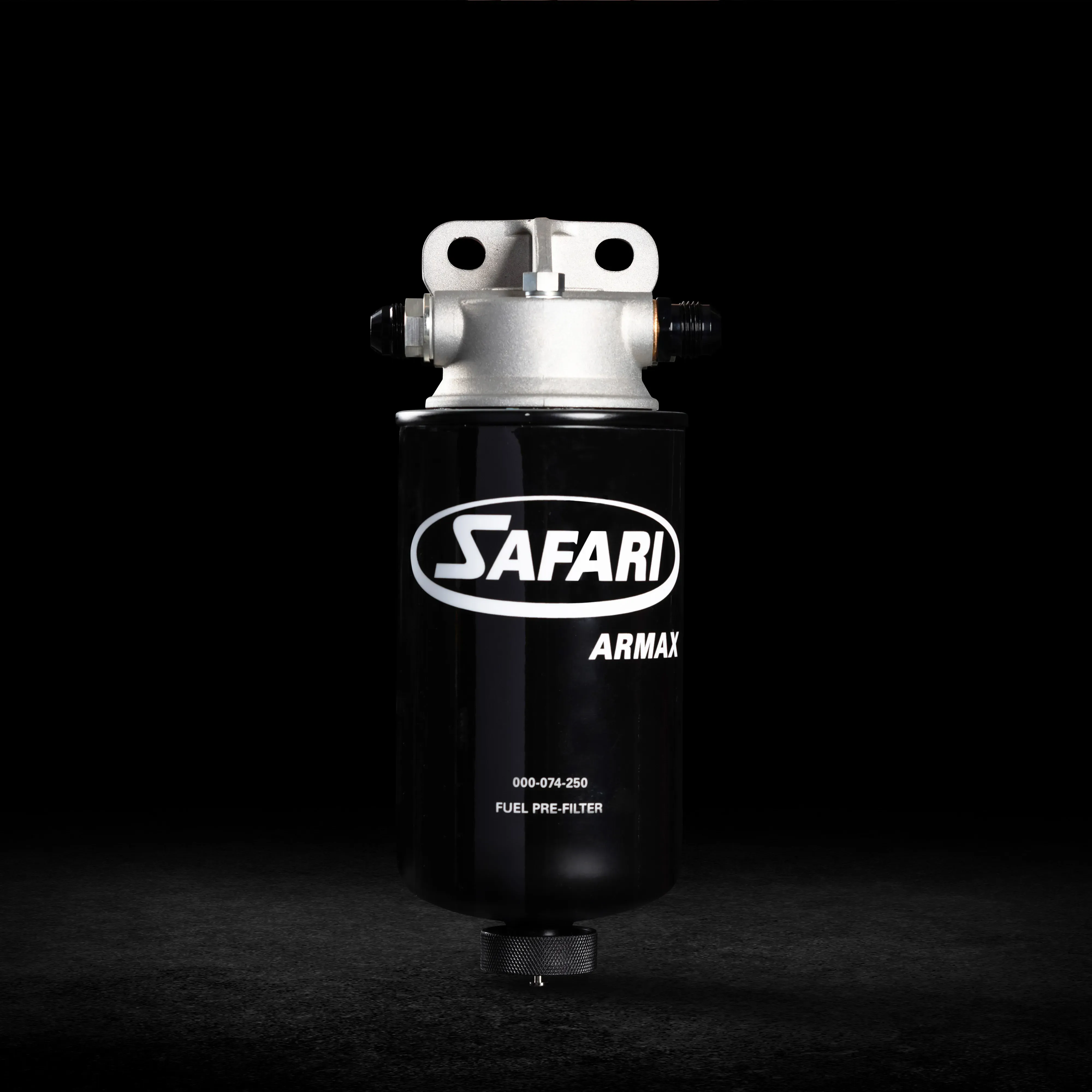

Armax FUEL PRE-FILTER

Safari Part Number: SFFVDJ70RH

Diesel fuel can become easily contaminated with water and/or micro particle matter which highly degrades the quality and effectiveness of the fuel being injected into an engine. Contaminated diesel fuel is one of the most common causes of diesel engine failure. By adding a Safari ARMAX Auxiliary Pre Fuel Filter, the diesel fuel is passed through a 30 micron primary filter before it reaches the vehicle’s standard final fuel filter.


  • 98% particle separation (based on 30 micron particles)
  • Designed for high output applications
  • 100% water separation efficiency (based on 300μm droplet size)
  • Prevents premature engine component failure
  • Easily serviceable
  • In-cab water detection alert
  • Maintains Safari ARMAX ECU engine and drivetrain warranty
