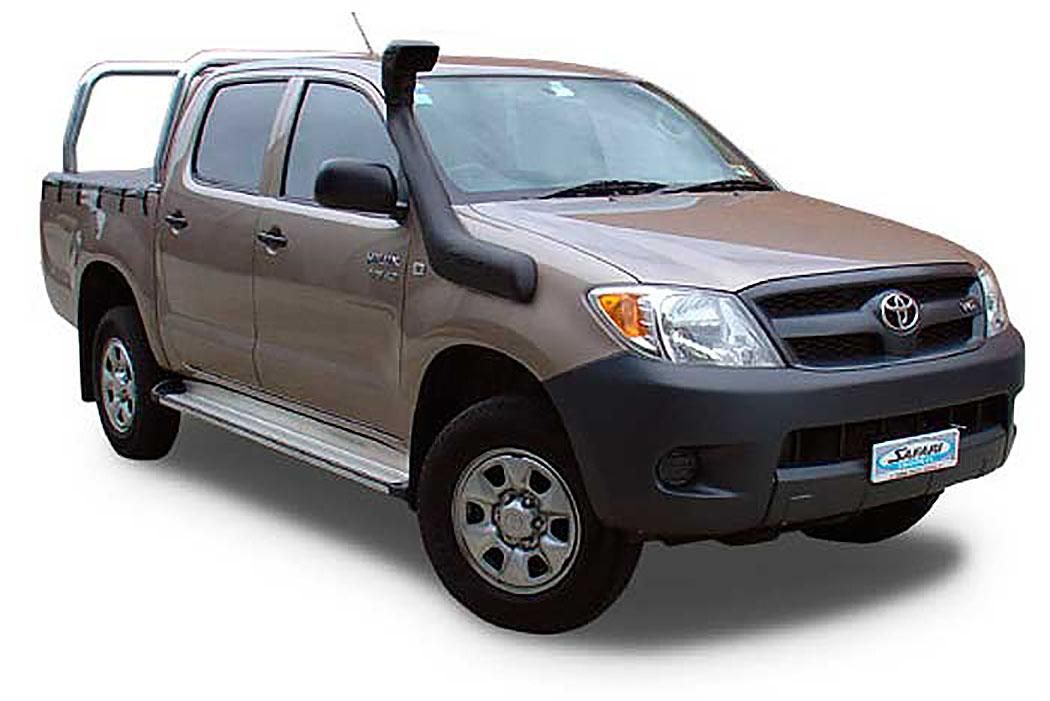

ss120hf snorkel toyota hilux 25 series

4X4 SNORKEL suitable for the Toyota Hilux 25 Series 03/2005 - 07/2011 3.0L Diesel 1KD-FTV

Safari Part Number: SS120HF

Safari Snorkel

The SS120HF Safari Snorkel suitable for Toyota Hilux 25 Series Snorkel is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of 04/2005 - 09/2011 3.0L Diesel 1KD-FTV engines.

With the huge air flow demands of each engine in the Toyota 04/2005 - 09/2011 3.0L Diesel 1KD-FTV Hilux 25 Series, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.

Huge air flow is but one aspect of the ultimate in snorkel design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.

The genuine Safari Snorkel suitable for Toyota Hilux 25 Series 4x4 Snorkel body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the Safari Snorkel suitable for Toyota Hilux 25 Series breezes through the toughest off-road conditions on the planet.

Safari Toyota Hilux 25 Series 4x4 Snorkel Features

  • Safari Automotive Australian designed, moulded and manufactured
  • Raised air intake to prevent your engine from ingesting harmful elements
  • Increased airflow for your 04/2005 - 09/2011 3.0L Diesel 1KD-FTV engine
  • Water separating air ram design to remove water from the air stream
  • Durable and UV stable snorkel and air ram for added strength
  • Comprehensive snortkel fitting guide suitable for Toyota Hilux 25 Series 4WD with an accurate template for assisting with installation.

Safari ARMAX Snorkel suitable for 25 Series Toyota Hilux 4x4 Features


  • Up to 50% increased airflow for your 25 Series Hilux engine
  • Safari’s rounded style Air Ram; however with minimum 4” neck and an optimised air flow, low restriction grill
  • Australian designed, moulded and manufactured
  • Design and flow tested by our in house engineers for maximum performance
  • Development in conjunction with other soon to be released ARMAX™ performance enhancement products.
  • Raised air intake to prevent your engine from ingesting harmful elements
  • Water separating air ram design to remove water from the air stream
  • Durable and UV stable snorkel and air ram for added strength
  • Comprehensive Snorkel fitting guide suitable for Toyota Land Cruiser 4WD with an accurate template for installation.
  • Lifetime warranty

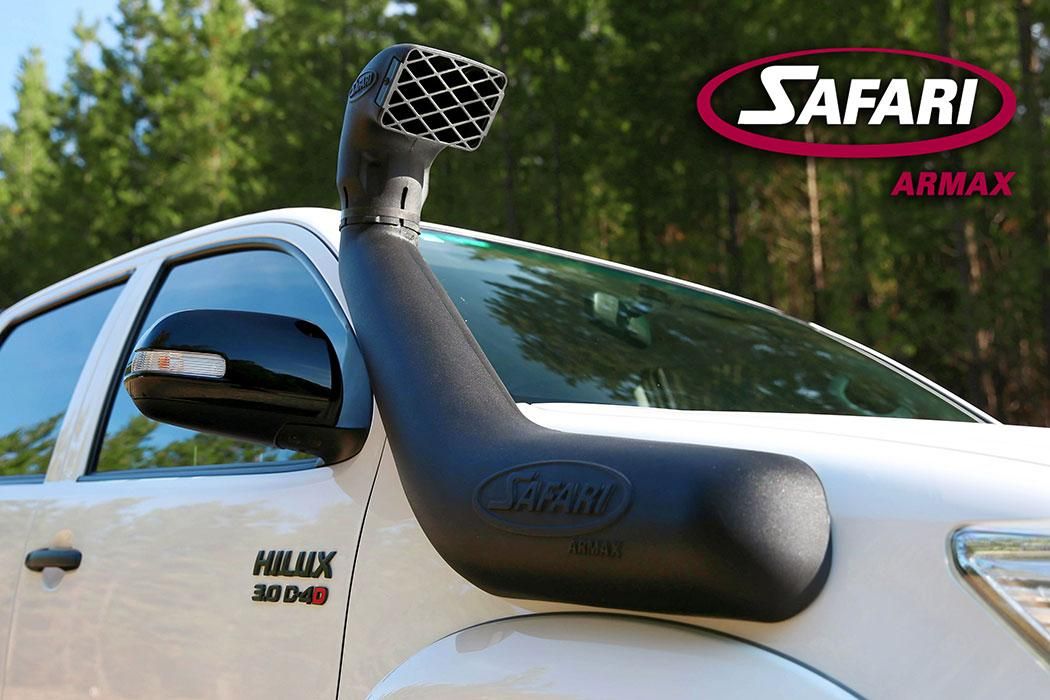

toyota hilux 25 series safari armax snorkel ss122hpo

The SS122HP Safari Snorkel suitable for Toyota 25 Series Hilux 4x4 is designed to deliver up to 50% more air than the OE air intake for Toyota Hilux engines.

With the popularity of performance upgrades using engine management and larger exhausts, Safari 4x4 Engineering took the decision to design a snorkel system that not only raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner, but also would be able to deliver the necessary volume of air into the engine, therefore maximising the performance enhancements potential.

Huge air flow is but one aspect of the ultimate in snorkel design suitable for Toyota Hilux. The Safari ARMAX snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari ARMAX air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.

Safari Snorkel suitable for Toyota Hilux 25 Series 4x4 Kit - Parts List

Safari Snorkel suitable for Toyota Hilux 25 Series 4x4 Snorkel Part Number SS120HF

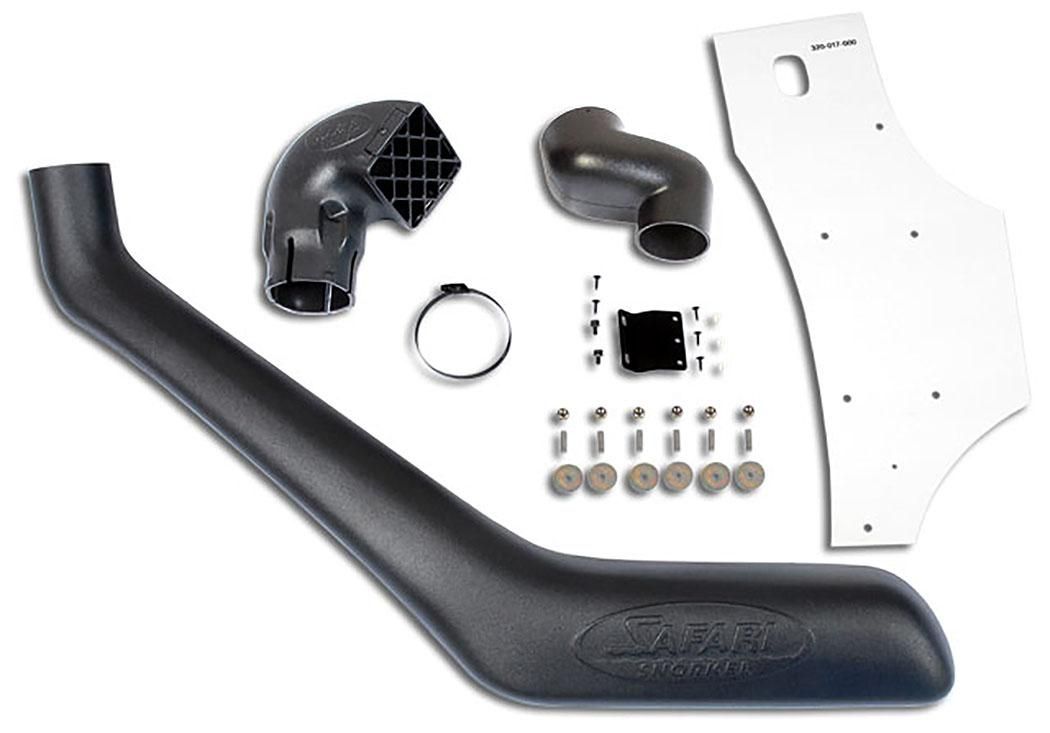

ss120hf toyota hilux 25 series snorkel kit

ITEMPART NO.
DESCRIPTION
QTY
1 320-133-000 BODY – SNORKEL 1
2 000-135-650 3 ½" AIR RAM ASSEMBLY 1
3 320-032-000 BRACKET - UPPER MOUNTING 1
4 000-002-100 BOLT - HEX 6.0mm x 1.0 x 14mm (SEMS) 2
5 000-951-300 CREW – S/T 4.2mm x 16mm 3
6 000-960 BODY CLIP – PLASTIC 3
7 320-024-200 HOSE – AIR ENTRY 1
7a 000-908 CLAMP - HOSE 70/90mm 1
7b 000-910 CLAMP - HOSE 90/110mm 1
8 000-110 STUD - S/S 8mm x 1.25 x 25mm - O/L 6
9 000-311 WASHER - BODY 8mm x 30mm 6
10 000-205 NUT - NYLOC 8mm x 1.25mm 6
11 320-017-000 TEMPLATE 1
12 000-914/B HOSE CLAMP - SIZE 56 (BLACK) 1

Safari Snorkel suitable for Toyota Hilux 25 Series 4x4 Snorkels for 04/2005 - 09/2011 3.0L Diesel 1KD-FTV Models
