ss415hf snorkel toyota fj cruiser

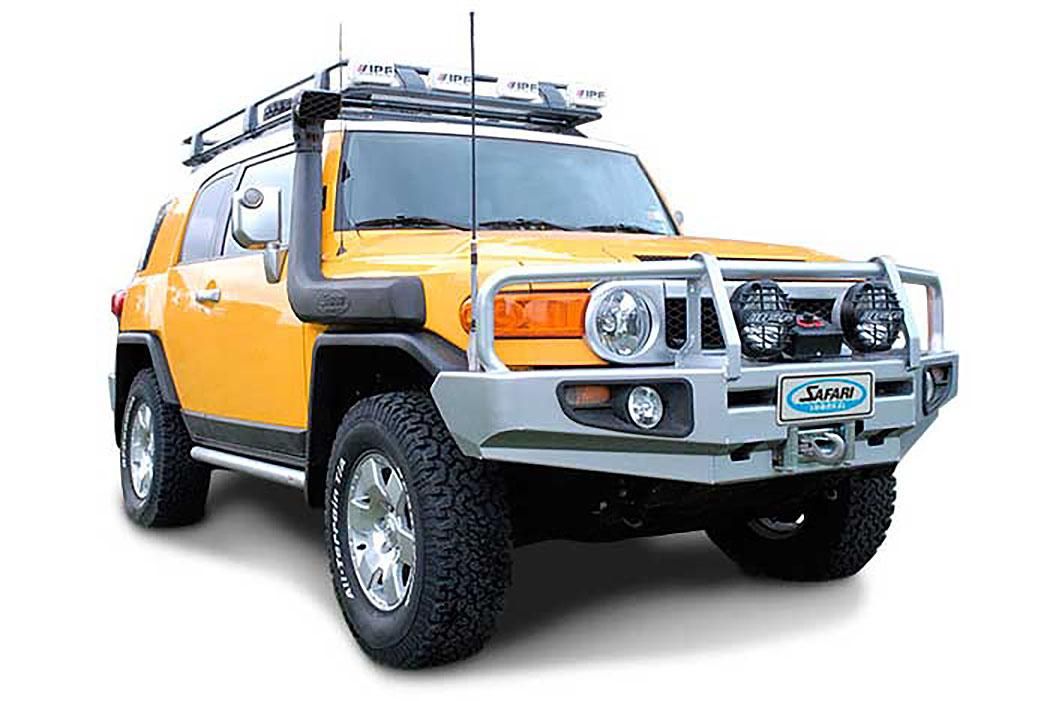

4X4 SNORKEL to suit Toyota FJ Cruiser 2008 with 'All Terrain Package'

Safari Part Number: SS415HF

Safari Snorkel

The SS415HF Safari Snorkel to suit Toyota FJ Cruiser 4x4 is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of 2008 with 'All Terrain Package' engines.

With the huge air flow demands of each engine in the Toyota 2008 with 'All Terrain Package' FJ Cruiser, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.

Huge air flow is but one aspect of the ultimate in snorkel design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.

The genuine Safari Snorkel to suit Toyota FJ Cruiser is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the snorkel breezes through the toughest off-road conditions on the planet.

Safari Snorkel to suit Toyota FJ Cruiser 4x4 Features

  • Safari Automotive Australian designed, moulded and manufactured
  • Raised air intake to prevent your engine from ingesting harmful elements
  • Increased airflow for your 2008 with 'All Terrain Package' engine
  • Water separating air ram design to remove water from the air stream
  • Durable and UV stable snorkel and air ram for added strength
  • Comprehensive Safari Snorkel to suit Toyota FJ Cruiser 4WD fitting guide with an accurate template for assisting with installation.

Safari Snorkel to suit Toyota FJ Cruiser 4x4 Kit - Parts List

Safari Snorkel to suit Toyota FJ Cruiser 4WD for 2008 with 'All Terrain Package' Models - Safari 4x4 Engineering Snorkel to suit Toyota FJ Cruiser 4x4 Part Number SS415HF

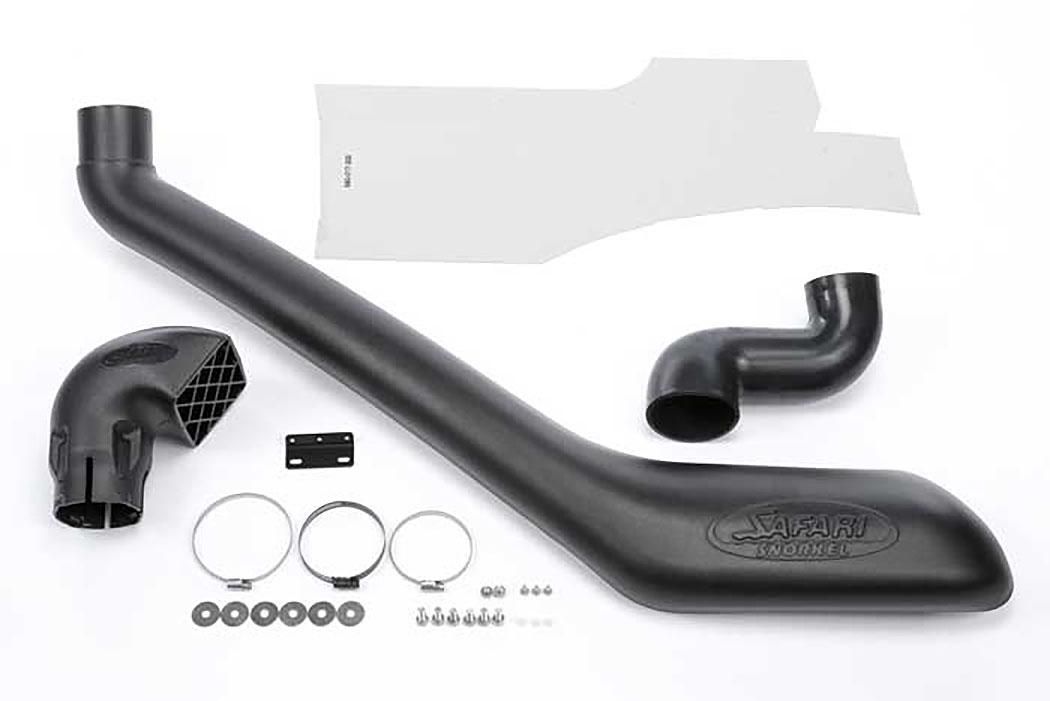

ss415hf toyota fj cruiser snorkel kit

Actual model not shown.

ITEMPART NO.
DESCRIPTION
QTY
1 340-133-000 BODY - SNORKEL (SS410HF) 1
2 000-135-650 3 1/2" AIR RAM ASSEMBLY 1
3 340-032-000 BRACKET - UPPER MOUNTING 1
4 000-002-100 BOLT - HEX - 6mm x 1.0 x 14mm (SEMS) 3
5 000-951-300 SCREW - S/T 4.2mm x 16mm 3
6 000-960 INSERT - PLASTIC 3
7 000-110 STUD - S/S - 8mm x 1.25 x 25mm - O/L 8
8 000-311 WASHER - BODY - 8mm x 30mm 8
9 000-205 NUT - NYLOC - 8mm x 1.25mm 8
10 340-024-000 HOSE - AIR ENTRY 1
11 000-910 CLAMP - HOSE - 90/110mm 2
12 000-914/B HOSE CLAMP - SIZE 56 (BLACK) 1
13 340-017-000 TEMPLATE 1
