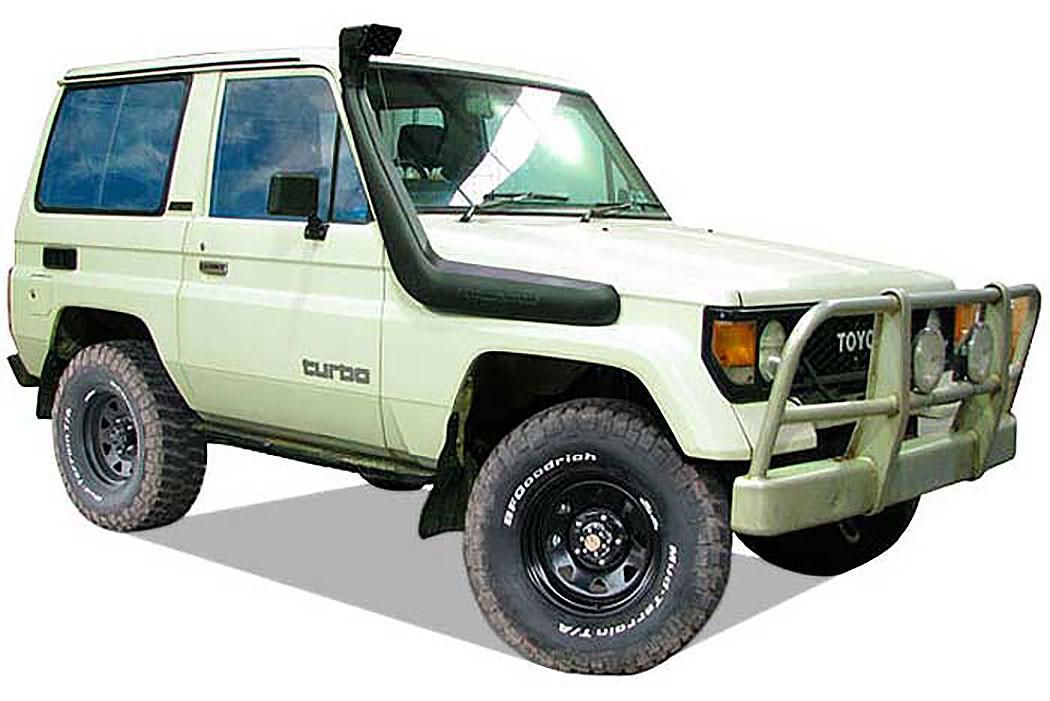

ss71r snorkel toyota bundera

4X4 SNORKEL suitable for the Toyota Bundera 2.4L Diesel

Safari Part Number: SS71HF

Safari Snorkel

The SS71HF Safari Snorkel suitable for Toyota Bundera 4x4 is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of 2.4L Diesel engines.

With the huge air flow demands of each engine in the Toyota 2.4L Diesel Bundera, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.

Huge air flow is but one aspect of the ultimate in snorkel design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.

The genuine Safari Snorkel suitable for Toyota Bundera 4x4 Snorkel body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the snorkel breezes through the toughest off-road conditions on the planet.

Safari Snorkel suitable for Toyota Bundera 4x4 Snorkel Features

  • Safari Automotive Australian designed, moulded and manufactured
  • Raised air intake to prevent your engine from ingesting harmful elements
  • Increased airflow for your 2.4L Diesel engine
  • Water separating air ram design to remove water from the air stream
  • Durable and UV stable snorkel and air ram for added strength
  • Comprehensive Snorkel fitment guide to suite Toyota Bundera 4WD with an accurate template for assisting with installation.

Safari Snorkel suitable for Toyota Bundera 4x4 Kit - Parts List

Safari Snorkel suitable for Toyota Bundera FJ Cruiser 4WD Snorkel for 2.4L Diesel Models - Part Number SS71HF

ss71r toyota bundera snorkel kit

Actual Model not shown

ITEMPART NO.
DESCRIPTION
QTY
1 330-133-000R BODY - SNORKEL 1
2 000-135-050 3" AIR RAM ASSEMBLY 1
3 345-032-000 BRACKET - UPPER MOUNTING 1
4 000-002-100 BOLT - HEX - 6mm x 1.0 x 14mm (SEMS) 2
5 000-951-100 SCREW - S/T - 4.2mm x 13mm - S/S 3
6 000-960 INSERT - PLASTIC 3
7 000-110 STUD - 8mm x 1.25 x 25mm - S/S 4
8 000-311-300 WASHER - BODY - 8mm x 30mm - S/S 4
9 000-205-300 NUT - NYLOC - 8mm x 1.25mm - S/S 4
10 000-958-050 POP RIVET - 2.4mm x 4.5mm 2
11 345-024-000 HOSE - AIR ENTRY 1
12 000-907 CLAMP - HOSE - 60/80mm 1
13 000-908 CLAMP - HOSE - 70/90mm 1
14 000-918/B CLAMP - HOSE - SIZE 48 (BLACK) 1
15 345-017-000 TEMPLATE - GUARD PANEL 1

Safari Snorkel suitable for Toyota Bundera Snorkels for 2.4L Diesel Models
