ss77hfz ss77r toyota 71 73 75 76 78 79 series wide front landcruiser

4X4 SNORKEL suitable for the Toyota 76, 78 & 79 Series Wide Front Landcruiser 03/2007 Onwards 4.2L Diesel 1HZ (Factory Snorkel Replacement) (International)

Safari ARMAX Performance Overview:

Safari Performance Products suitable for Toyota Land Cruiser 70 Series Wide Front 1HZ Diesel 4x4 include turbocharger, intercooler, engine management, exhaust, snorkel, oil cooler and drivetrain systems. Safari 4x4 Engineering ARMAX products are a combination of durable components and thoroughly engineered systems designed to enhance Toyota Land Cruiser 70 Series Wide Front 1HZ Diesel 4WD performance, durability and driveability - particularly vehicles that tow heavy loads or with increased duties ranging from four-wheel driving anywhere across the globe to the added GVM of the Armouring Industry.

ARMAX Products suitable for the Toyota Land Cruiser 70 Series Wide Front 1HZ Diesel include:

  • Turbocharger System
  • Intercooler System
  • Engine Management
  • Exhaust System
  • Snorkel
  • Oil Cooler
  • Drivetrain components.

Safari Toyota 4x4 ARMAX Performance Systems have long been regarded as the ultimate in tough and powerful technology for diesel 4x4 vehicles. Precision built to OEM standards, every Safari ARMAX Performance product not only delivers a huge improvement in engine power and torque, but more importantly, robust, reliable and fuel efficient performance for many thousands of kilometres of rough and demanding roads and tracks. toyota 70 series landcruiser 1hz power graph

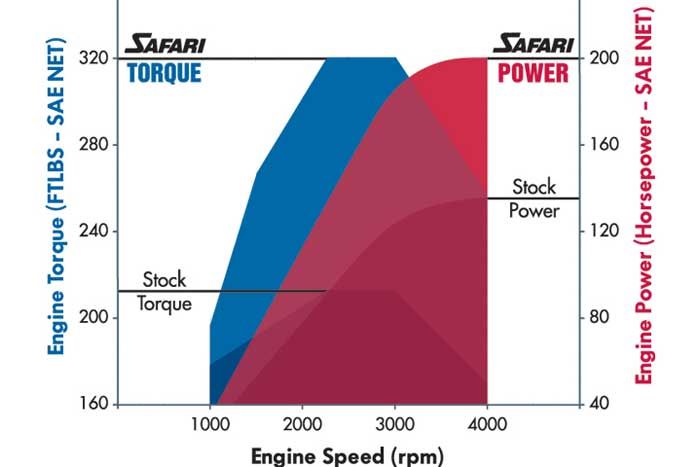

*Safari ARMAX Performance Products suitable for Toyota Land Cruiser 70 Series 1HZ dyno graph shown.

Part Number: SS79HFZ

  • Australian designed, moulded and manufactured
  • Raised air intake to prevent your engine from ingesting harmful elements
  • Increased airflow for your 03/2007 Onwards 4.2L Diesel 1HZ engine
  • Water separating air ram design to remove water from the air stream
  • Durable and UV stable snorkel and air ram for added strength
  • Comprehensive Safari Snorkel fitting guide suitable for Toyota 70 Series Land Cruiser 4WD with an accurate template for installation.
  • Lifetime Warranty

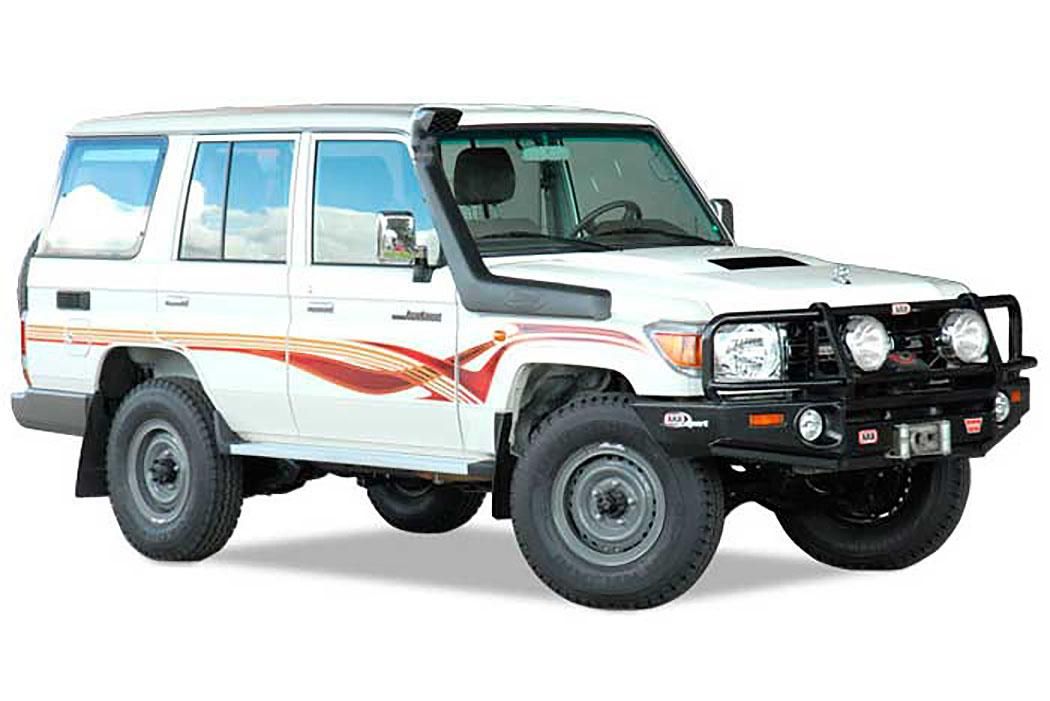

ss77hfz ss77r toyota 71 73 75 76 78 79 series wide front landcruiser

The SS79HFZ Safari Snorkels suitable for Toyota 70 Series Land Cruiser 4x4 is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of 03/2007 Onwards 4.2L Diesel 1HZ engines.

With the huge air flow demands of each engine in the Toyota 03/2007 Onwards 4.2L Diesel 1HZ 70 Series Land Cruiser, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.

Huge air flow is but one aspect of the ultimate in snorkel design suitable for Toyota 70 Series Land Cruisers. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.

The genuine Safari Snorkel suitable for Toyota 70 Series Land Cruiser 4x4 Snorkel body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the Safari Snorkel suitable for Toyota 70 Series Land Cruiser snorkel breezes through the toughest off-road conditions on the planet.

V-Spec snorkels are identified with a ‘HF’ at the end of the part number. These snorkels are manufactured in Australia from Safari’s own industrial specification UV stabilized polyethylene material. A life time warranty is included for peace of mind when it comes to your vehicle.

Safari ARMAX Turbocharger suitable for Toyota Land Cruiser 70 Series Wide Front 1HZ

Safari Turbocharger suitable for Toyota Land Cruiser 70 Series Wide Front 1HZ Part Number:

STHZJ70W - Safari Turbocharger System suitable for the 70 Series Wide Nose Body Toyota LandCruiser - 1HZ 4.2L Diesel Engine


Diesel engine efficiency for Toyota's 1HZ engine is legendary but as most diesel owners know only too well, the downside is somewhat leisurely performance especially when towing and or driving in off-road conditions.

The professionally developed and engineered Safari 4x4 ARMAX Turbocharger suitable for 1HZ Toyota Land Cruiser delivers amazing performance.

With Safari Turbochargers on roads and tracks all over the planet, you can be certain that Safari 4x4 Engineering has a deep understanding of the 70 Series Diesel Wide Nose 1HZ Diesel engine and the expertise required to manufacture the most reliable and powerful turbo enhancement for your Toyota 4x4 engine.

With a Safari ARMAX Turbocharger suitable for Toyota 4x4s, you not only get a huge boost in power and torque, you get it with the added bonus of improved fuel economy under load. Why? Because under extreme conditions when you really need, that extra power you get from Safari means more efficiency. Better power to weight. Less stress and strain all through your engine.

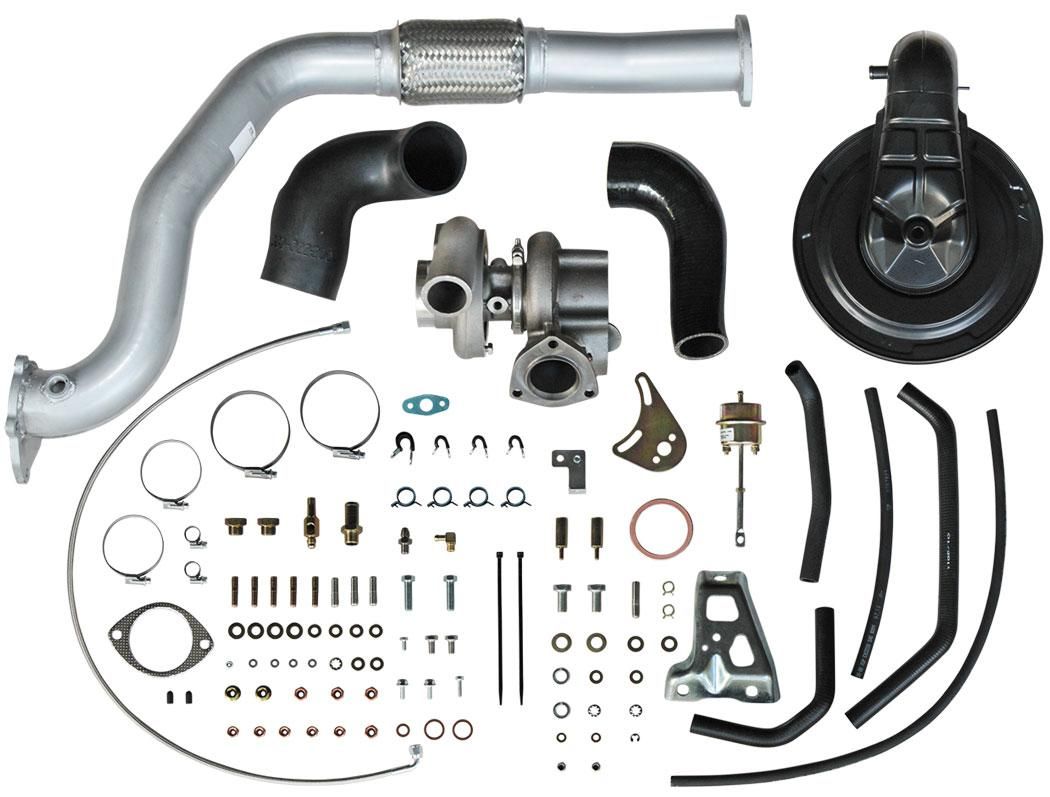

sthzj70w safari turbocharger kit toyota landcruiser 1hz

Safari 4x4 Engineering ARMAX Turbocharger suitable for 70 Series Diesel Wide Nose 1HZ Engine


Safari ARMAX Intercooler suitable for 70 Series Diesel Wide Nose 1HZ Engine

Safari Intercooler suitable for 70 Series Diesel Wide Nose 1HZ Engine Part Number:

SCHZJ70W -  Safari Top Mount Intercooler System suitable for the 70 Series Wide Nose Body Toyota LandCruiser fitted with Safari Turbo System- 1HZ 4.2L Diesel Engine
SCFHZJ70W -  Safari Front Mount Intercooler System suitable for the 70 Series Wide Nose Body Toyota LandCruiser fitted with Safari Turbo System (STHZJ70W) - 1HZ 4.2L Diesel Engine

scfhzj70w safari armax toyota landcruiser front mount intercooler

The professionally developed and engineered Safari ARMAX Intercooler System for the Safari turbocharged system suitable for 4x4 70 Series Diesel Wide Nose 1HZ engine delivers absolutely amazing performance. It's not only impressive - it's reliable, consistent and sustainable power. The cooler air returned to your engine by this Safari Intercooler also ensures lower engine operating temperatures.

An engine that runs cooler, runs more reliably and for longer. Higher speeds and/or greater load carrying conditions can be maintained too - without the normal fuel consumption penalty as more power for a given volume of fuel (given identical conditions) means more economical fuel consumption for your 70 Series Diesel Wide Nose 1HZ Engine.

For overtaking, towing or touring, an ARMAX Safari Intercooled Turbo System suitable for your Toyota four-wheel drive will transform your Toyota 4x4 vehicle with power and torque you may have never thought achievable.

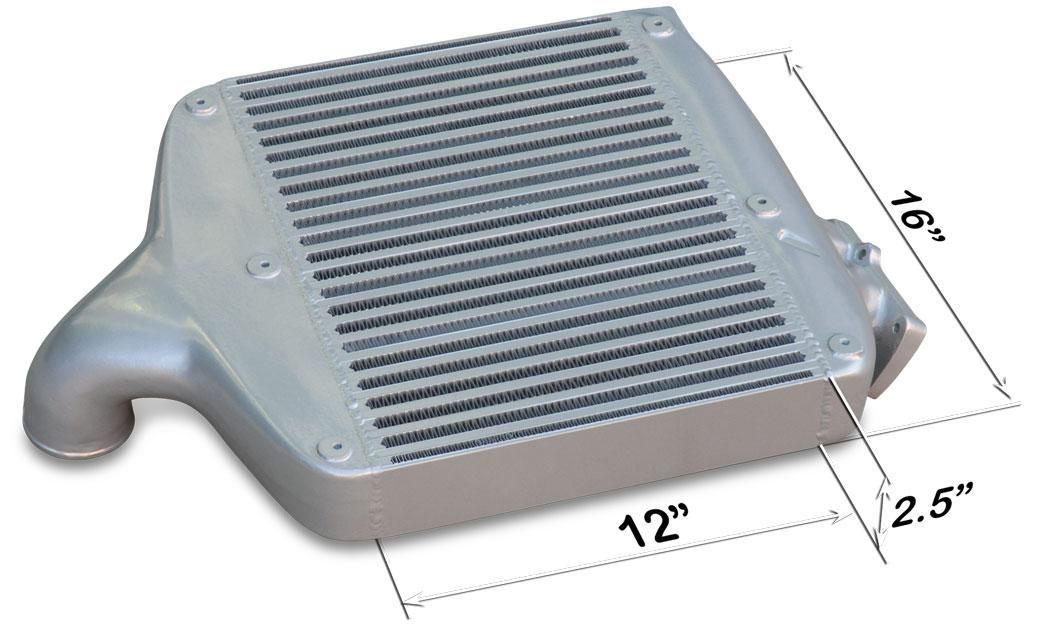

 jstchzj76w safari armax toyota landcruiser top mount intercooler

 Safari 4x4 Engineering - ARMAX Intercooler suitable for 70 Series Diesel Wide Nose 1HZ Engine



Safari ARMAX Engine Management suitable for 70 Series Diesel Wide Nose 1HZ Engine

Safari ARMAX Engine management suitable for 70 Series Diesel Wide Nose 1HZPart Numbers:

330-087-000 - Safari ARMAX Boost Compensator suitable for 70 Series Diesel Wide Nose 1HZ Engine

Details Available Soon

Safari 4x4 Engineering - ARMAX Boost Compensator suitable for 70 Series Diesel Wide Nose 1HZ

Safari ARMAX Exhaust suitable for 70 Series Diesel Wide Nose 1HZ Engine

70 Series Diesel Wide Nose 1HZ Engine Exhaust Part Numbers:

SEHZJ76W - 3" Diameter mandrel formed High Output Exhaust system suitable for the 76 Series Wide Nose Body Toyota LandCruiser fitted with Safari Turbo System (STHZJ70W) - 1HZ 4.2L Diesel Engine
SEHZJ78W - 3" Diameter mandrel formed High Output Exhaust system suitable for the 78 Series Wide Nose Body Toyota LandCruiser fitted with Safari Turbo System (STHZJ70W) - 1HZ 4.2L Diesel Engine
SEHZJ79N - 3" Diameter mandrel formed High Output Exhaust system suitable for the 79 Series Wide Nose Body Toyota LandCruiser fitted with Safari Turbo System (STHZJ70W) - 1HZ 4.2L Diesel Engine

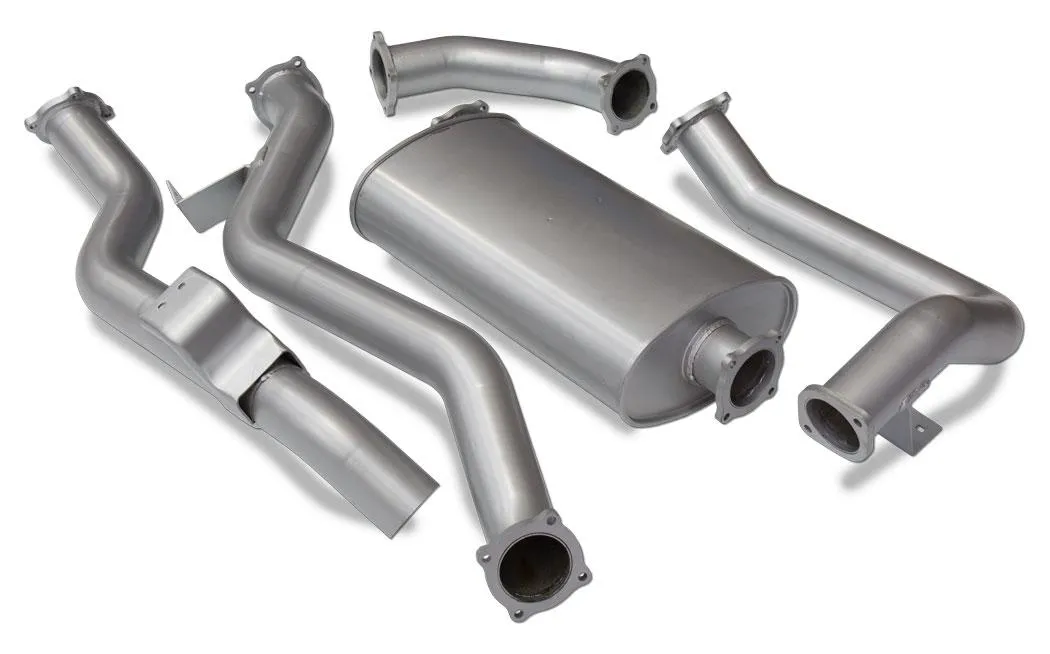

sehzj70w safari armax exhaust toyota landcruiser 70 series 1hz

Unlike intercooling which lowers the intake charge air temperature, a highly efficient exhaust system evacuates hot exhaust gasses quickly from the exhaust manifold and promotes cooler combustion chamber temperatures.

Safari 4x4 Engineering has developed what is arguably the ultimate in maximum efficiency exhaust systems suitable for the 70 Series Diesel Wide Nose 1HZ Engine 4WD. Precision manufactured in true 3" tube for high gas flow capacity, aluminised steel for corrosion resistance, mandrel bent for maximum flow efficiency and 4-bolt flanged exhaust connections for high strength, unmatched fatigue resistance and a lifetime of leak-free operation. Moreover, this Safari ARMAX Toyota exhaust system has been designed for the maximum clearance to vital components, zero contact with body and suspension and installation is a breeze.

The increase in maximum gas flow through the removal of the standard 1HZ diesel system's restrictions results in a significant power increase for your 70 Series Diesel Wide Nose 1HZ Engine without the usual increases in exhaust gas/cylinder head temperatures. The result is a superb Safari ARMAX exhaust system that delivers almost 100% improvement in exhaust gas flow capacity suitable for Toyota Land Cruiser 70 Series 4x4's.

Safari 4x4 Engineering - ARMAX Exhaust suitable for 70 Series Diesel Wide Nose 1HZ Engine

Safari ARMAX Oil Cooler suitabler for 70 Series Diesel Wide Nose 1HZ Engine

Safari ARMAX Oil Cooler suitable for 70 Series Diesel Wide Nose 1HZ Engine Part Number:

SOHZJ70W - ARMAX Oil Cooler suitable for 70 Series Diesel Wide Nose 1HZ Engine (Left Hand Drive Only)



The Safari ARMAX Oil Cooler is a comprehensive and highly effective engine oil cooling system significantly that lowers 1HZ engine oil temperatures during the most arduous high load driving conditions.

This Safari ARMAX extreme duty oil cooler core has huge flow and cooling capacity and is strategically mounted on vibration damping mounts inside the 70 Series Diesel Wide Nose 1HZ engine compartment. Tough and durable custom Safari ARMAX oil lines, complete with highly robust connections transfer oil to and from the Safari ARMAX engine oil cooler. This avoids any possibility of cheap 'push on' fittings failing and stranding the vehicle.

In fact, each and every component included in the Safari ARMAX oil cooling system suitable for 70 Series Diesel Wide Nose 1HZ Engine 4x4's are engineered tough to support the greatest durability possible, whether it be a high horsepower engine or standard.

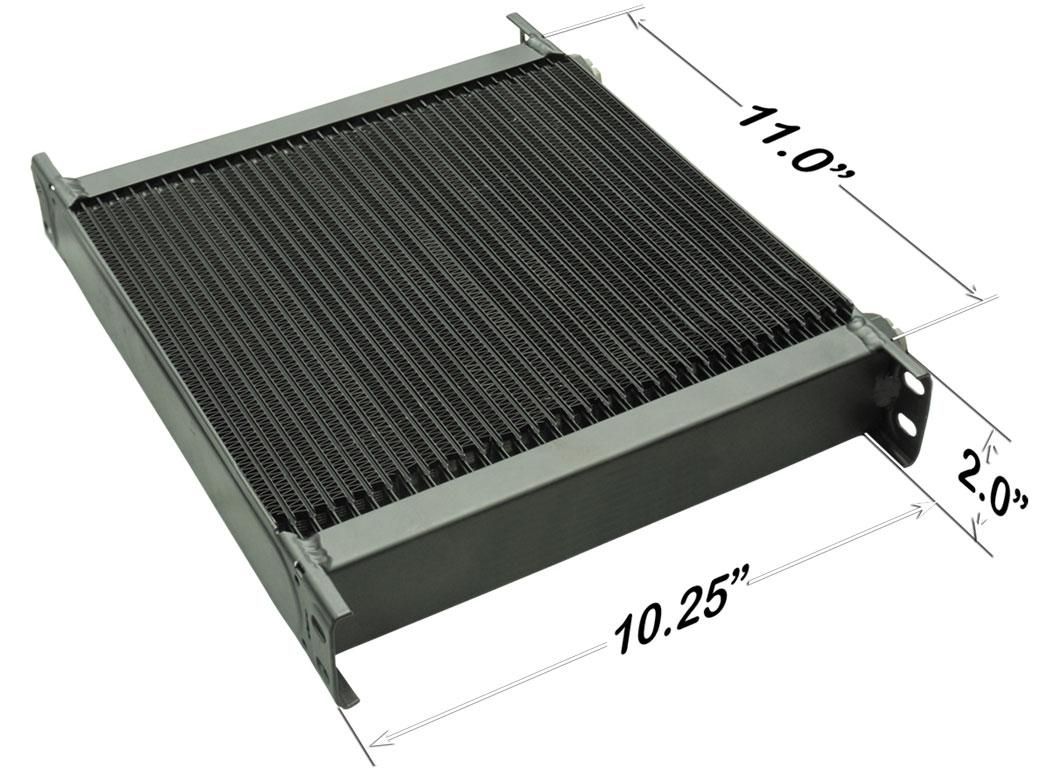

sohzj70w safari armax oil cooler toyota landcruiser 70 series 1hz

Safari 4x4 Engineering - ARMAX Engine Oil Cooler suitable for 70 Series Diesel Wide Nose 1HZ Engine

Safari ARMAX Drivetrain Products Suitable for 70 Series Diesel Wide Nose 1HZ

Part Numbers:

SGHZJ70C - High Speed 5th Gear Assembly suitable for the 70 Series Land Cruiser (Gen 2 & 3)
SDHZJ70CHD - Heavy Duty Clutch System suitable for the 70 Series Land Cruiser (Gen 2 & 3) - 60% increase in torque capacity
SDHZJ70C - Clutch System suitable for the 70 Series Land Cruiser (Gen 2 & 3) - 40% increase in torque capacity

Safari ARMAX 5th Gear Replacement suitable for Toyota 1HZ.

Many manual transmission, diesel powered vehicles, suffer from high RPM loads in 5th gear. This makes a vehicle far less economical and puts more strain on the engine.

With the replacement of the standard 1HZ Engine 5th gear for the Safari ARMAX 5th gear, your engine does not need to run at such high RPM when in 5th gear. The Safari ARMAXGearset suitable for 70 Series Diesel Wide Nose 1HZ Engine is a direct replacement of the relative stock components. The Safari ARMAX 5th Gear Replacement results in a 20% decrease in engine RPM at any given speed when in 5th gear.

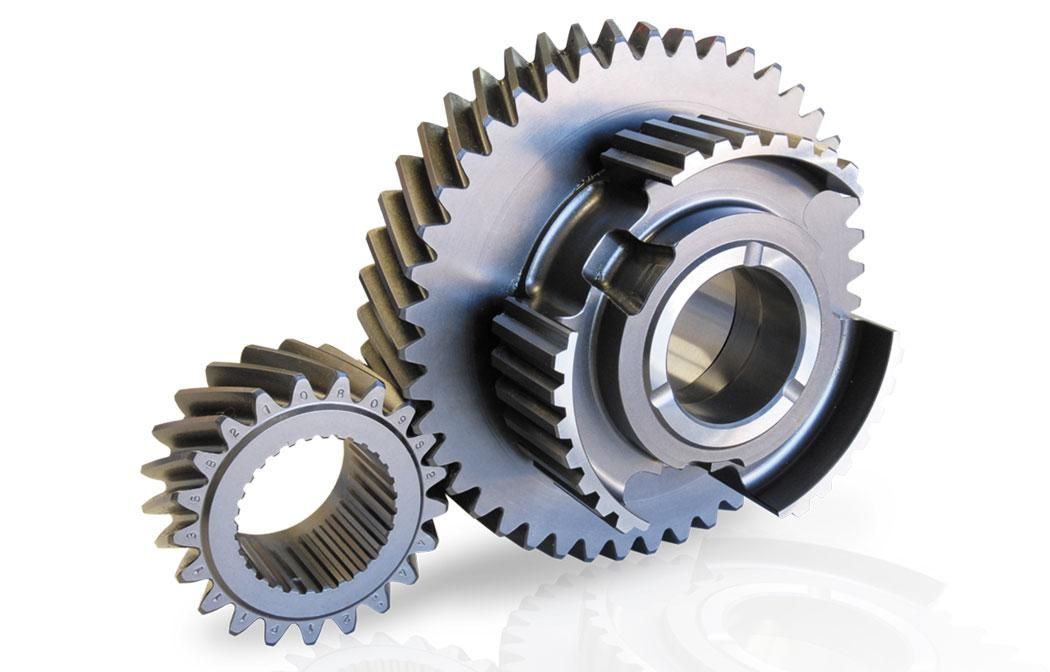

safari armax 5th gear replacement toyota landcruiser 70 series 1hz
Safari ARMAX Extreme Duty Clutches




Standard Toyota 70 Series Diesel Wide Nose 1HZ Engine clutches are often well matched to torque and power outputs of standard vehicles being used in standard conditions. Once you have increased power and/or torque or increased GVM or towing capacity for your Toyota 4x4, the clutch becomes the weak link in utilising all that your vehicle has to offer.

Safari have stepped up to the plate and engineered clutch assemblies suitable for the 1HZ Engine that have 40% or 60% higher torque capacity as required. That is a huge improvement and best of all, maintains stock drivability characteristics.

The Safari ARMAX clutch assembly suitable for your Toyota 70 Series Diesel Wide Nose 1HZ Drivetrain allows you to fully utilise the torque of your vehicle with unsurpassed driveability and durability.

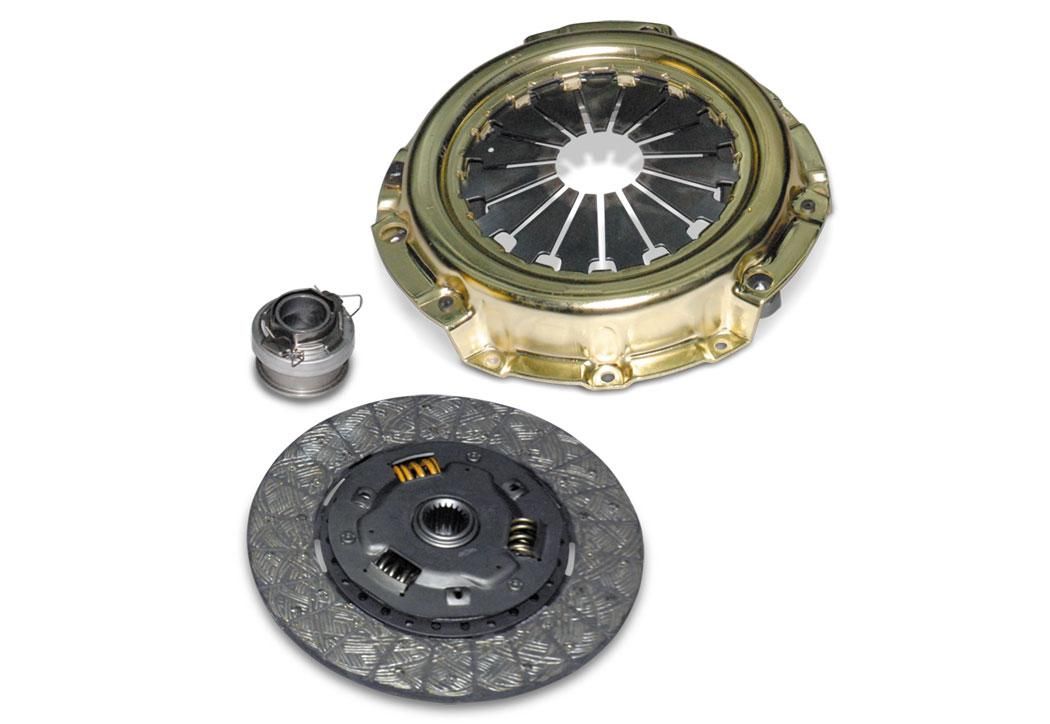

hzj76 safari armax heavy duty clutch toyota landcruiser 70 series 1hz

Safari 4x4 Engineering - ARMAX Drivetrain Products suitable for Toyota 70 Series Diesel Wide Nose 1HZ

Safari Products suitable for Toyota 76, 78 & 79 Series Wide Front Landcruiser 4x4 Snorkels for 03/2007 Onwards 4.2L Diesel 1HZ (Factory Snorkel Replacement) Models
