ss60r snorkel toyota 60 61 62 series landcruiser

4X4 SNORKEL suitable for for the Toyota 60, 61 & 62 Series Landcruiser 01/1980 - 12/1989 All Engines

Safari Part Number: SS60HF

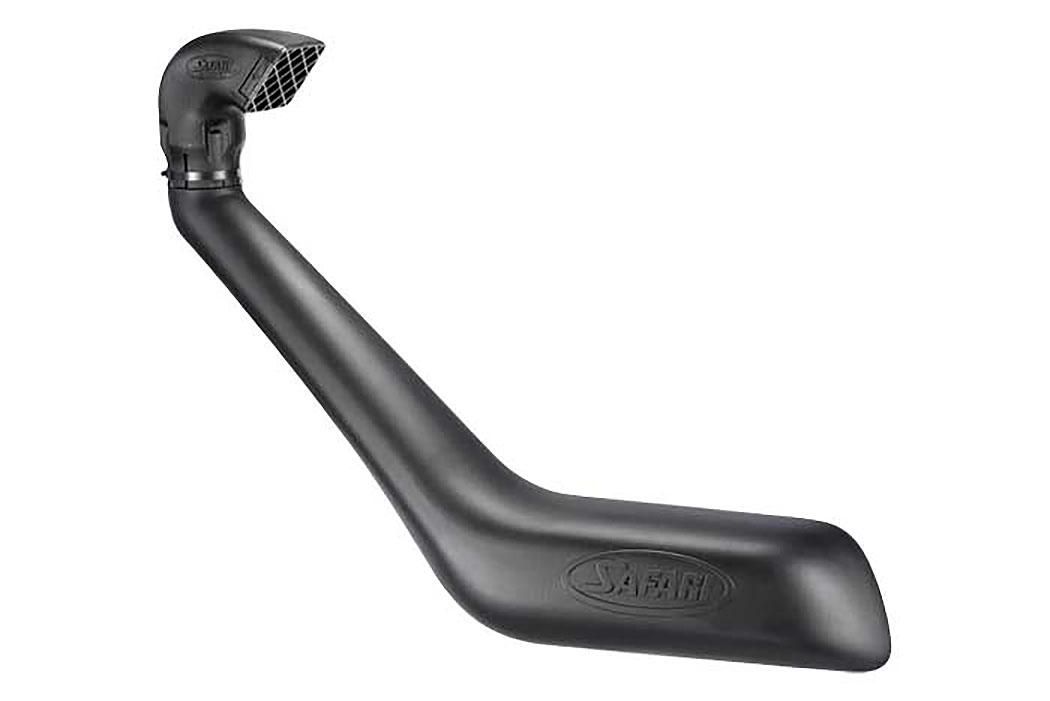

Safari Snorkel

The SS60HF Safari Snorkel suitable for Toyota 60, 61 & 62 Series Landcruiser 4x4 is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of 01/1980 - 12/1989 All Engines.

With the huge air flow demands of each engine in the Toyota 01/1980 - 12/1989 All Engines 60, 61 & 62 Series Landcruiser, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.

Huge air flow is but one aspect of the ultimate in snorkel design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.

The genuine Safari Snorkel suitable for Toyota 60, 61 & 62 Series Landcruiser 4x4 Snorkel body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the snorkel breezes through the toughest off-road conditions on the planet.

Safari Snorkel suitable for Toyota 60, 61 & 62 Series Landcruiser 4x4 Features

  • Safari Automotive Australian designed, moulded and manufactured
  • Raised air intake to prevent your engine from ingesting harmful elements
  • Increased airflow for 01/1980 - 12/1989 All Engines
  • Water separating air ram design to remove water from the air stream
  • Durable and UV stable snorkel and air ram for added strength
  • Comprehensive Snorkel fitting guide suitable for Toyota 60, 61 & 62 Series Landcruiser 4WD with an accurate template for assisting with installation.

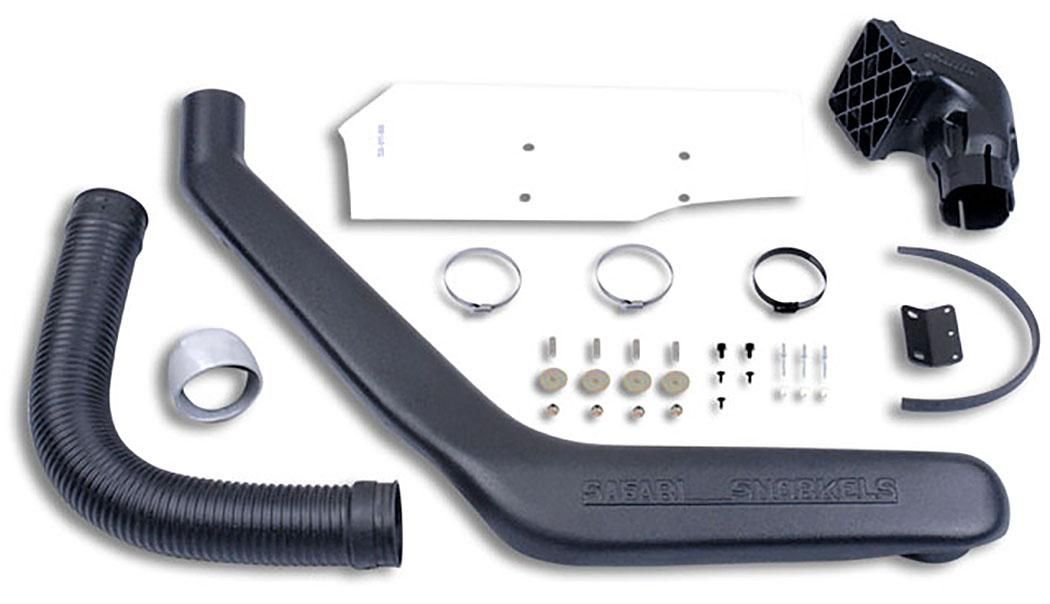

Safari Snorkel suitable for Toyota 60, 61 & 62 Series Landcruiser 4x4 Kit - Parts List

Safari Snorkel suitable for Toyota 60, 61 & 62 Series Landcruiser 4WD Snorkel for 01/1980 - 12/1989 All Engine Models - Part Number SS60HF

ss60r toyota 60 61 62 series landcruisersnorkel kit

ITEMPART NO.
DESCRIPTION
QTY
1 355-133-000R BODY - SNORKEL 1
2 000-135-050 3" AIR RAM ASSEMBLY 1
3 355-032-000 BRACKET - UPPER MOUNTING 1
4 000-951 SCREW - S/T - 4.2 x 13mm 3
5 000-960 CLIP - BODY - PLASTIC 3
6 000-002-100 BOLT - HEX - 6mm x 1.0 x 14mm 2
7 355-023-400 ADAPTOR - DUCT 1
8 000-958 POP RIVET - 4mm x 12mm 3
9 000-885-070 CUFFED HOSE - 75mm ID x 700mm 1
10 000-908 CLAMP - HOSE - 70/90 2
11 000-953-040 EDGING - RUBBER - 400mm 1
12 000-110 STUD - S/S - 8mm x 1.25 x 25mm - O/L 4
13 000-205-300 NUT - NYLOC - 8mm x 1.25 4
14 000-311-300 WASHER - BODY - 8mm x 30mm 4
15 355-017-000 TEMPLATE 1
16 000-918/B HOSE CLAMP - SIZE 48 (BLACK) 1

Safari Snorkel suitable for Toyota 60, 61 & 62 Series Landcruiser Snorkels for 60, 61 & 62 Series Landcruiser 01/1980 - 12/1989 All Engine Models
