4X4 SNORKEL for the Suzuki Jimny 01/2000 - 12/2004 1.3L Petrol
Safari Part Number: SS820HF
Safari Snorkel

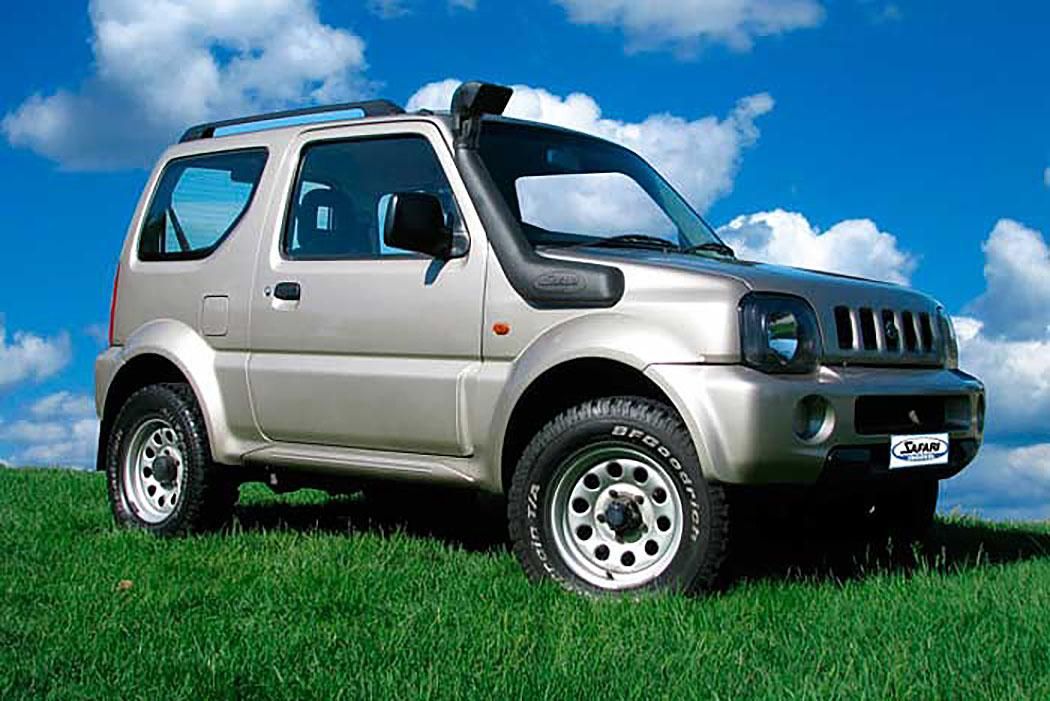

The SS820HF Suzuki Jimny 4x4 Snorkel is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of 01/2000 - 12/2004 1.3L Petrol engines.
With the huge air flow demands of each engine in the Suzuki 01/2000 - 12/2004 1.3L Petrol Jimny, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.
Huge air flow is but one aspect of the ultimate in snorkel Suzuki Jimny design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.
The genuine Suzuki Jimny 4x4 Snorkel body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the Suzuki Jimny snorkel breezes through the toughest off-road conditions on the planet.
SS820HF Does not suit 2012 facelift model
Safari Suzuki Jimny 4x4 Snorkel Features
- Safari Automotive Australian designed, moulded and manufactured
- Raised air intake to prevent your engine from ingesting harmful elements
- Increased airflow for your 01/2000 - 12/2004 1.3L Petrol engine
- Water separating air ram design to remove water from the air stream
- Durable and UV stable snorkel and air ram for added strength
- Comprehensive Suzuki Jimny Snorkel fitting guide with an accurate template for assisting with installation.
Safari Snorkel Suzuki Jimny 4x4 Kit - Parts List
Suzuki Jimny Snorkel for 01/2000 - 12/2004 1.3L Petrol Models - Safari Automotive Suzuki Jimny 4x4 Snorkel Part Number SS820HF
SS820HF Does not suit 2012 facelift model
Actual model not shown.
| ITEM | PART NO. | DESCRIPTION | QTY |
|---|---|---|---|
| 1 | 930-133-000R | BODY - SNORKEL | 1 |
| 2 | 000-135-400 | 3 " AIR RAM ASSEMBLY | 1 |
| 3 | 930-032-000 | BRACKET - UPPER MOUNTING | 1 |
| 4 | 000-002-100 | BOLT - HEX - 6mm x 1.0 x 14mm - S/S (SEMS) | 2 |
| 5 | 000-951-100 | SCREW - S/T - 4.2mm x 13mm - S/S | 3 |
| 6 | 000-960 | INSERT - PLASTIC | 3 |
| 7 | 000-110 | STUD - 8mm x 1.25 x 25mm - S/S | 5 |
| 8 | 000-311-300 | WASHER - BODY - 8mm x 32mm - S/S | 5 |
| 9 | 000-205-300 | NUT - NYLOC - 8mm x 1.25mm - S/S | 5 |
| 10 | 930-024-000 | HOSE - AIR ENTRY | 1 |
| 11 | 000-907 | CLAMP - HOSE 60/80mm | 1 |
| 12 | 000-909 | CLAMP - HOSE 80/100mm | 1 |
| 13 | 000-918/B | CLAMP - HOSE - No. 48 (BLACK) | 1 |
| 14 | 930-017-200 | TEMPLATE - INNER GUARD | 1 |
| 15 | 930-017-000 | TEMPLATE - GUARD PANEL | 1 |
