ss730hf snorkel nissan pathfinder

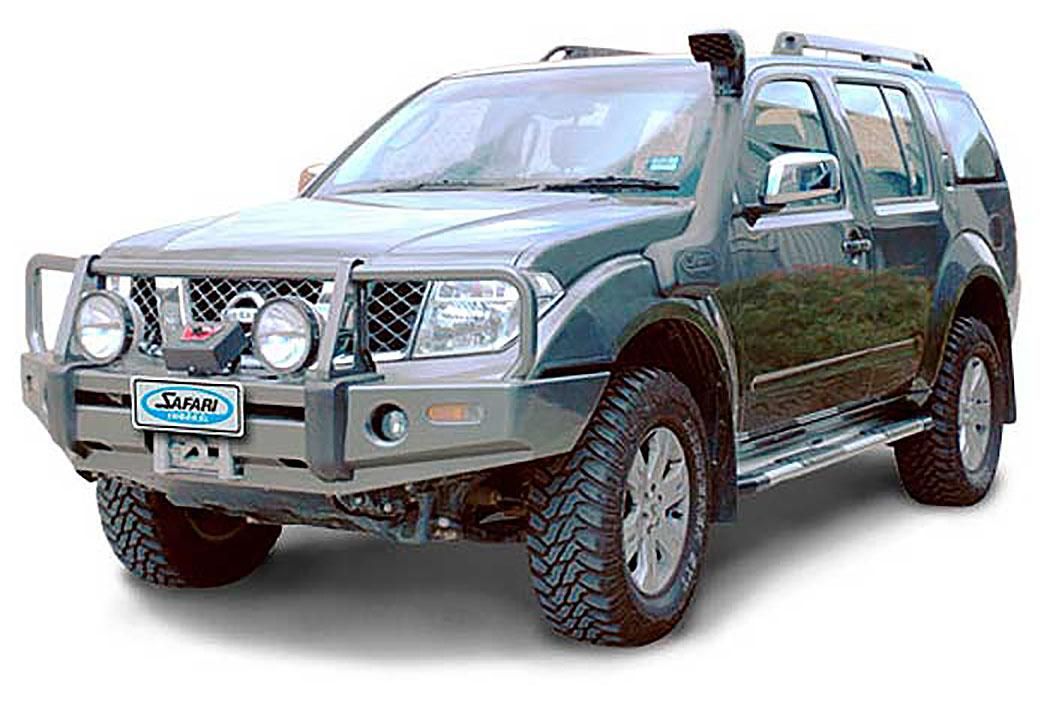

4X4 SNORKEL for the Nissan Pathfinder 04/2005 - 2009 VIN No: VSK 2.5L Diesel

Safari Part Number: SS730HFB

Safari Snorkel

The SS730HFB Nissan Pathfinder 4x4 Snorkel is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of 04/2005 - 2009 VIN No: VSK 2.5L Diesel engines.

With the huge air flow demands of each engine in the Nissan 04/2005 - 2009 VIN No: VSK 2.5L Diesel Pathfinder, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.

Huge air flow is but one aspect of the ultimate in snorkel Nissan Pathfinder design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.

The genuine Safari Nissan Pathfinder 4x4 Snorkel body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the Nissan Pathfinder snorkel breezes through the toughest off-road conditions on the planet.

Safari Nissan Pathfinder 4x4 Snorkel Features

  • Safari Automotive Australian designed, moulded and manufactured
  • Raised air intake to prevent your engine from ingesting harmful elements
  • Increased airflow for your 04/2005 - 2009 VIN No: VSK 2.5L Diesel engine
  • Water separating air ram design to remove water from the air stream
  • Durable and UV stable snorkel and air ram for added strength
  • Comprehensive Nissan Pathfinder 4WD Snorkel fitting guide with an accurate template for assisting with installation.

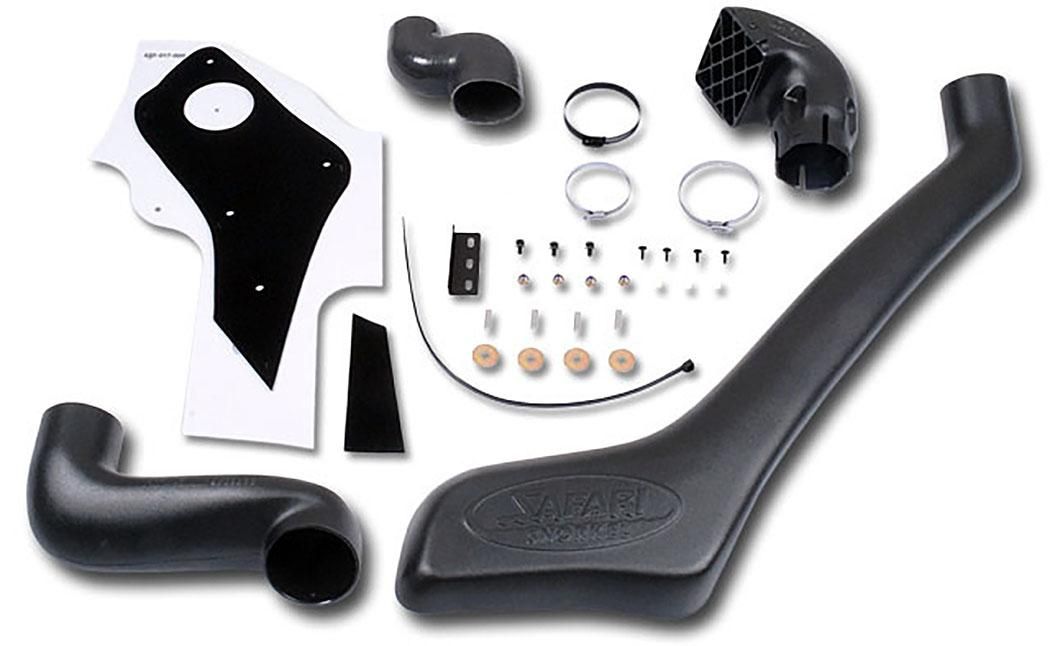

Safari Snorkel Nissan Pathfinder 4x4 Kit - Parts List

Nissan Pathfinder 4WD Snorkel for 04/2005 - 2009 VIN No: VSK 2.5L Diesel Models - Safari Automotive Nissan Pathfinder 4x4 Snorkel Part Number SS730HFB

ss730hf nissan pathfinder snorkel kit

ITEMPART NO.
DESCRIPTION
QTY
1 430-133-000 BODY – SNORKEL 1
2 000-135-650 3½” AIR RAM ASSEMBLY 1
3 430-032-000 BRACKET - UPPER MOUNTING 1
4 000-002-100 BOLT - HEX - 6mm x 1.0 x 14mm (SEMS) 3
5 000-951-300 SCREW – S/T 4.2mm x 16mm 4
6 000-960 CLIP – BODY (PLASTIC) 3
7 000-110 STUD – S/S - 8mm x 1.25 x 25mm O/L 4
8 000-311 WASHER - BODY - 8mm x 30mm 4
9 000-205 NUT - NYLOC - 8mm x 1.25mm 4
10 430-123-000 DUCT – INNER 1
11 430-024-000 HOSE – AIR ENTRY (SILICON) 1
12 000-907 CLAMP HOSE – 60/80mm 1
13 000-909 CLAMP HOSE – 80/100mm 1
14 000-987-550 CABLE TIE – 8mm x 550mm 1
15 430-016-200 FOAM PAD – INNER DUCT (Self Adhesive) 1
16 430-016-000 FOAM PAD – SNORKEL BODY (Self Adhesive) 1
17 430-017-000 TEMPLATE 1
18 000-914/B HOSE – CLAMP – SIZE 56 (BLACK) 1
