ss735hf snorkel nissan navara

4X4 SNORKEL for the Nissan Navara D40 Single, King & Dual Cab 2008 Onwards VIN: MNT

Safari Part Number: SS735HFB

Safari Snorkel

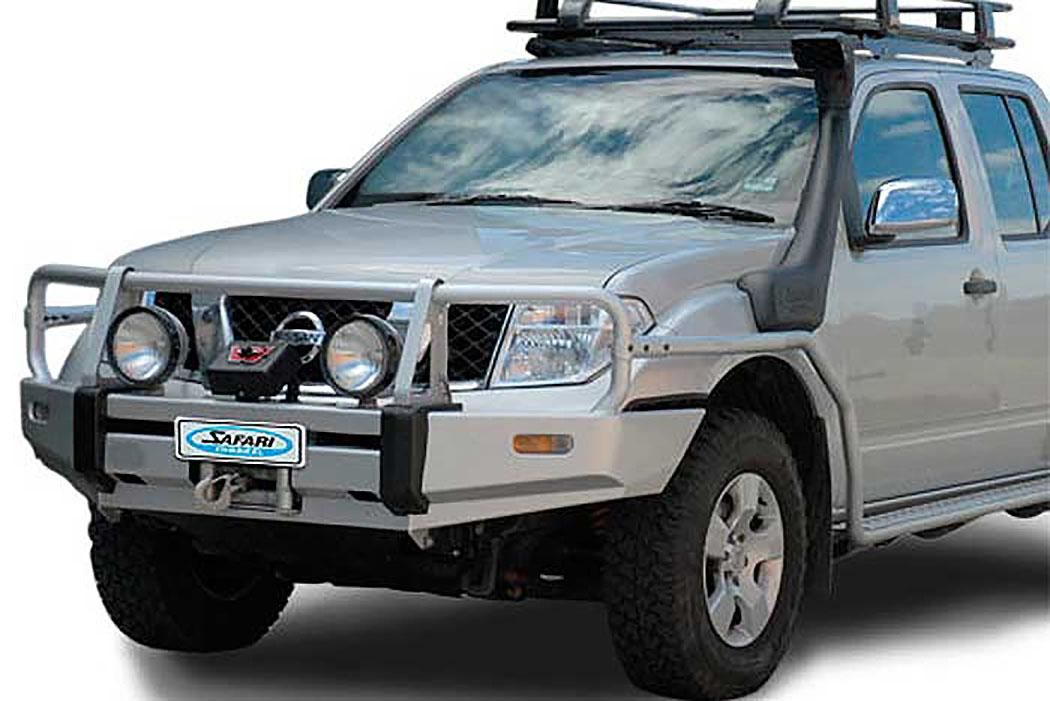

The SS735HFB Nissan Navara 4x4 Snorkel is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of D40 Single, King & Dual Cab 2008 Onwards VIN: MNT engines.

With the huge air flow demands of each engine in the Nissan D40 Single, King & Dual Cab 2008 Onwards VIN: MNT Navara, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.

Huge air flow is but one aspect of the ultimate in snorkel Nissan Navara design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.

The genuine Safari Nissan Navara 4x4 Snorkel body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the Nissan Navara snorkel breezes through the toughest off-road conditions on the planet.

*Does not suit rx 4x2 and 4x4 models

Safari Nissan Navara 4x4 Snorkel Features

  • Safari Automotive Australian designed, moulded and manufactured
  • Raised air intake to prevent your engine from ingesting harmful elements
  • Increased airflow for your D40 Single, King & Dual Cab 2008 Onwards VIN: MNT engine
  • Water separating air ram design to remove water from the air stream
  • Durable and UV stable snorkel and air ram for added strength
  • Comprehensive Nissan Navara 4WD Snorkel fitting guide with an accurate template for assisting with installation.

Safari Snorkel Nissan Navara 4x4 Kit - Parts List

Nissan Navara 4WD Snorkel for D40 Single, King & Dual Cab 2008 Onwards VIN: MNT Models - Safari Automotive Nissan Navara 4x4 Snorkel Part Number SS735HFB

*Does not suit rx 4x2 and 4x4 models

ss735hf nissan navara snorkel kit

Actual model not shown.

ITEMPART NO.
DESCRIPTION
QTY
1 430-133-000 BODY - SNORKEL 1
2 000-135-800 3½" AIR RAM ASSEMBLY 1
3 430-032-000 BRACKET - UPPER MOUNTING 1
4 000-002-100 BOLT - HEX - 6mm x 1.0 x 14mm (SEMS) 3
5 000-951-300 SCREW - S/T 4.2mm x 16mm 4
6 000-960 CLIP - BODY (PLASTIC) 3
7 000-110 STUD - S/S - 8mm x 1.25 x 25mm O/L 4
8 000-311 WASHER - BODY - 8mm x 30mm 4
9 000-205 NUT - NYLOC - 8mm x 1.25mm 4
10 430-123-000 DUCT - INNER 1
11 430-025-000 ADAPTOR - AIR ENTRY (Stainless Steel) 1
12 000-958 POP-RIVET - 4mm X 12mm 1
13 430-024-200 HOSE - AIR ENTRY 1
14 000-907 CLAMP HOSE - 60/80mm 1
15 000-909 CLAMP HOSE - 80/100mm 1
16 000-987-550 CABLE TIE - 8mm x 550mm 1
17 430-016-200 FOAM PAD - INNER DUCT (Self Adhesive) 1
18 430-016-000 FOAM PAD - SNORKEL BODY (Self Adhesive) 1
19 430-017-000 TEMPLATE 1
20 000-914/B HOSE - CLAMP - SIZE 56 (BLACK) 1

Safari Snorkel - Nissan Navara 4x4 Snorkels for D40 Single, King & Dual Cab 2008 Onwards VIN: MNT Models
