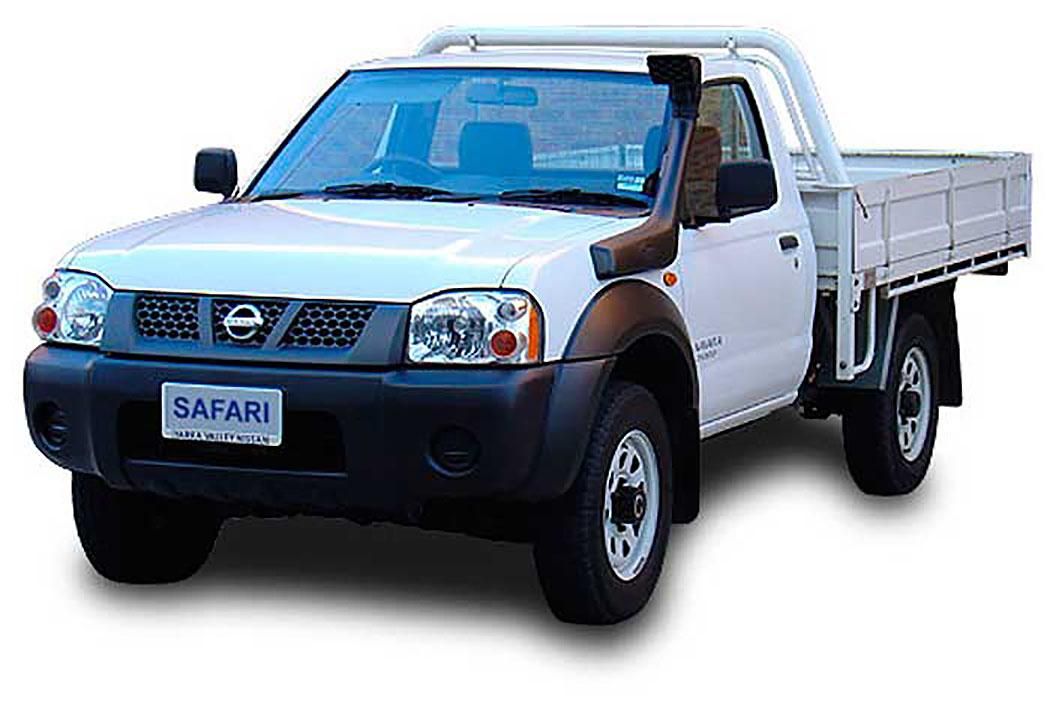

ss725hf snorkel nissan navara

4X4 SNORKEL for the Nissan Navara D22 3.0L Diesel

Safari Part Number: SS725HF

Safari Snorkel

The SS725HF Nissan Navara 4x4 Snorkel is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of D22 3.0L Diesel engines.

With the huge air flow demands of each engine in the Nissan D22 3.0L Diesel Navara, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.

Huge air flow is but one aspect of the ultimate in snorkel Nissan Navara design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.

The genuine Safari Nissan Navara 4x4 Snorkel body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the Nissan Navara snorkel breezes through the toughest off-road conditions on the planet.

Safari Nissan Navara 4x4 Snorkel Features

  • Safari Automotive Australian designed, moulded and manufactured
  • Raised air intake to prevent your engine from ingesting harmful elements
  • Increased airflow for your D22 3.0L Diesel engine
  • Water separating air ram design to remove water from the air stream
  • Durable and UV stable snorkel and air ram for added strength
  • Comprehensive Nissan Navara 4WD Snorkel fitting guide with an accurate template for assisting with installation.

Safari Snorkel Nissan Navara 4x4 Kit - Parts List

Nissan Navara 4WD Snorkel for D22 3.0L Diesel Models - Safari Automotive Nissan Navara 4x4 Snorkel Part Number SS725HF

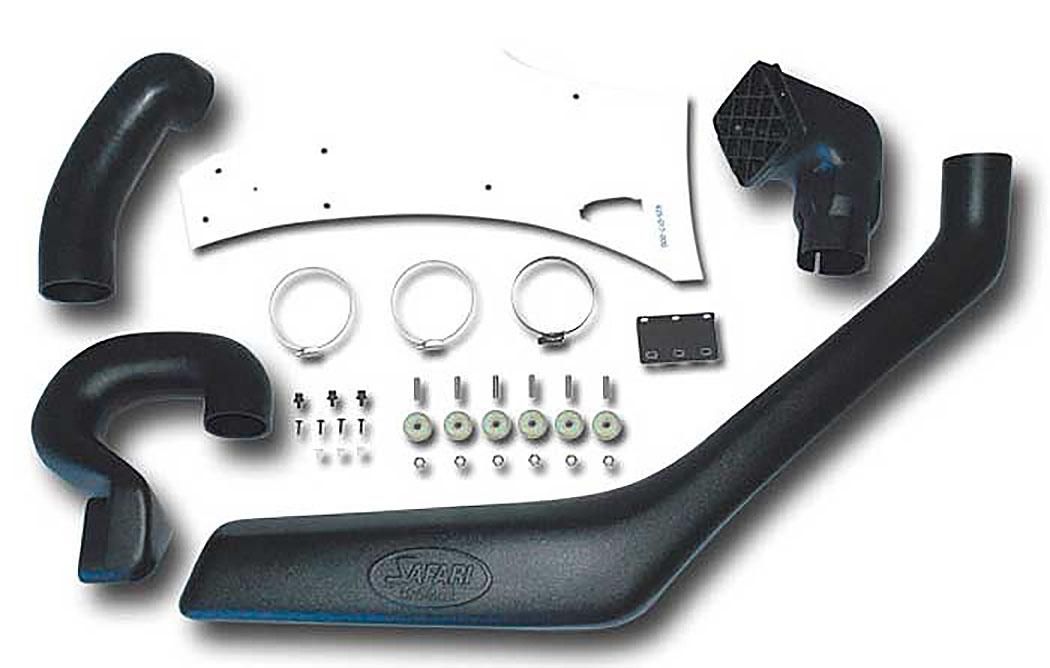

ss725hf nissan navara snorkel kit

ITEMPART NO.
DESCRIPTION
QTY
1 425-133-000 BODY - SNORKEL 1
2 000-135-050 3” AIR RAM ASSEMBLY 1
3 425-024-000 HOSE - AIR ENTRY 1
4 425-123-000 DUCT - CONNECTING 1
5 425-032-000 BRACKET - UPPER MOUNTING 1
6 000-002-100 BOLT - HEX 6mm x 1.0mm x 14mm 3
7 000-951-300 SCREW - S/T 4.2mm x 16mm 4
8 000-960 CLIP - BODY (PLASTIC) 3
9 000-110 STUD - S/S 8mm x 1.25 x 25mm O/L 6
10 000-311 WASHER - BODY 8mm x 30mm 6
11 000-205 NUT - NYLOC 8mm x 1.25mm 6
12 000-908 CLAMP - HOSE 70/90mm 2
13 425-017-000 TEMPLATE 1
14 000-918/B HOSE  CLAMP - SIZE 48  (BLACK) 1

Safari Snorkel Installation Guide

picture_as_pdfNissan Navara D22 3.0L Diesel 608.63 KB
