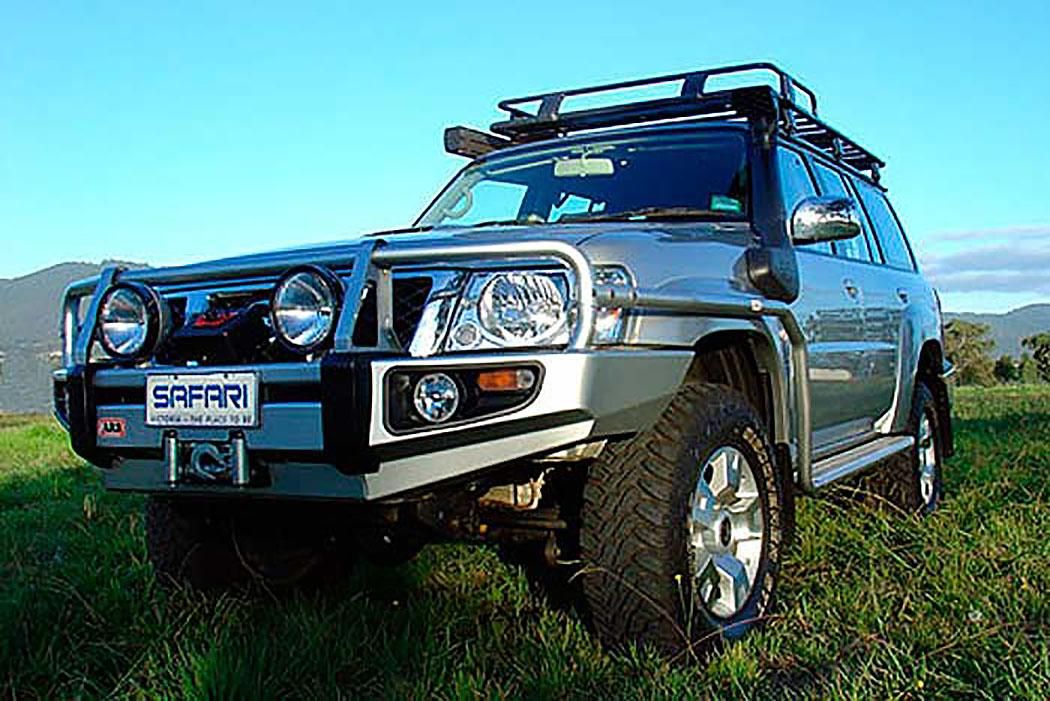

ss17hf snorkel nissan gu patrol y61

4X4 SNORKEL for the Nissan GU Patrol (Y61) Series 4 ZD30DDT 3.0L Diesel

Safari Part Number: SS17HFB

Safari Snorkel

The SS17HFB Nissan GU Patrol (Y61) 4x4 Snorkel is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of Series 4 ZD30DDT 3.0L Diesel engines.

With the huge air flow demands of each engine in the Nissan Series 4 ZD30DDT 3.0L Diesel GU Patrol (Y61), Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.

Huge air flow is but one aspect of the ultimate in snorkel Nissan GU Patrol (Y61) design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.

The genuine Safari Nissan GU Patrol (Y61) 4x4 Snorkel body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the Nissan GU Patrol (Y61) snorkel breezes through the toughest off-road conditions on the planet.

Safari Nissan GU Patrol (Y61) 4x4 Snorkel Features

  • Safari Automotive Australian designed, moulded and manufactured
  • Raised air intake to prevent your engine from ingesting harmful elements
  • Increased airflow for your Series 4 ZD30DDT 3.0L Diesel engine
  • Water separating air ram design to remove water from the air stream
  • Durable and UV stable snorkel and air ram for added strength
  • Comprehensive Nissan GU Patrol (Y61) 4WD Snorkel fitting guide with an accurate template for assisting with installation.

Safari Snorkel Nissan GU Patrol (Y61) 4x4 Kit - Parts List

Nissan GU Patrol (Y61) 4WD Snorkel for Series 4 ZD30DDT 3.0L Diesel Models - Safari Automotive Nissan GU Patrol (Y61) 4x4 Snorkel Part Number SS17HFB

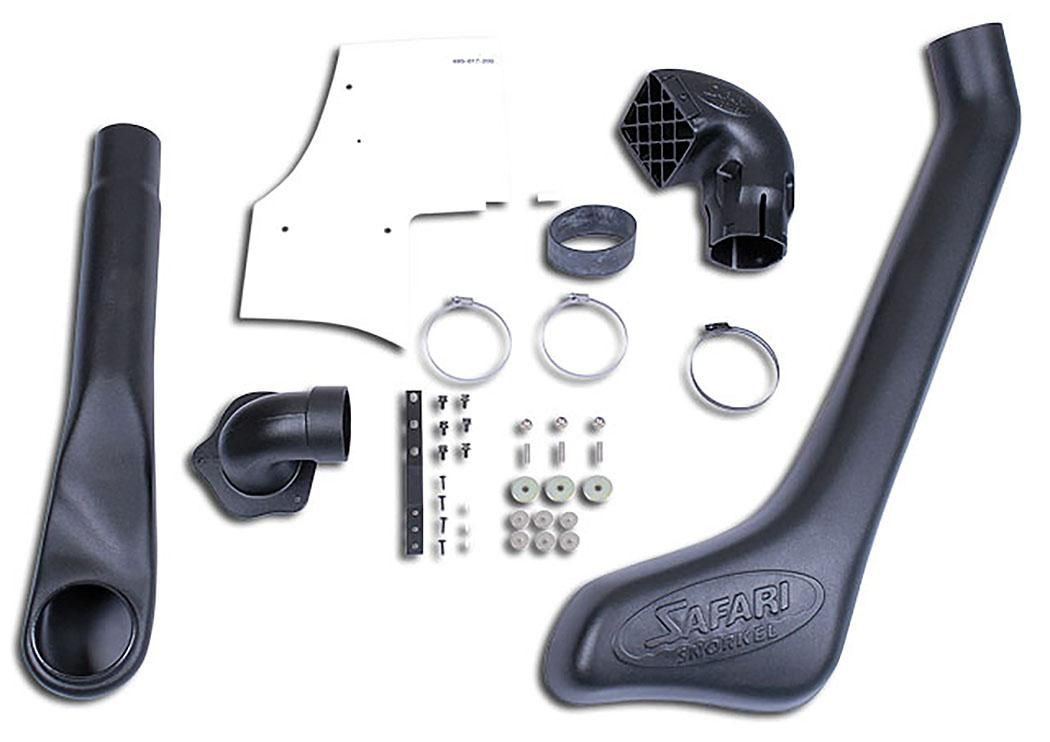

ss17hf nissan gu patrol y61 snorkel kit

1 485-133-200 BODY – SNORKEL (SS17HF) 1
2 000-135-800 3 ½”  AIR RAM ASSEMBLY 1
3 485-124-200 DUCT – INNER (SS17HF) 1
4 485-123-500 DUCT – CONNECTING (SS16HF) 1
5 485-032-000 BRACKET – UPPER MOUNTING 1
6 000-002-100 BOLT–HEX 6mm x 1.0mm x 14mm(SEMS) 6
7 000-951-300 SCREW – S/T 4.2mm x 16mm – S/S 4
8 000-960 INSERT – PLASTIC 3
9 000-110 STUD S/S 8mm x 1.25mm x 25mm O/L 3
10 000-311-300 WASHER – BODY 8mm x 30mm – S/S 3
11 000-205-300 NUT – NYLOC 8mm x 1.25mm – S/S 3
12 000-806-250 HOSE – RUBBER 82mm ID x 65mm 1
13 000-909 CLAMP – HOSE 80/100mm 2
14 000-321 WASHER – BODY 6mm x 20mm 6
15 485-017-200 TEMPLATE 1
16 000-914/B HOSE CLAMP – SIZE 56 (BLACK) 1
