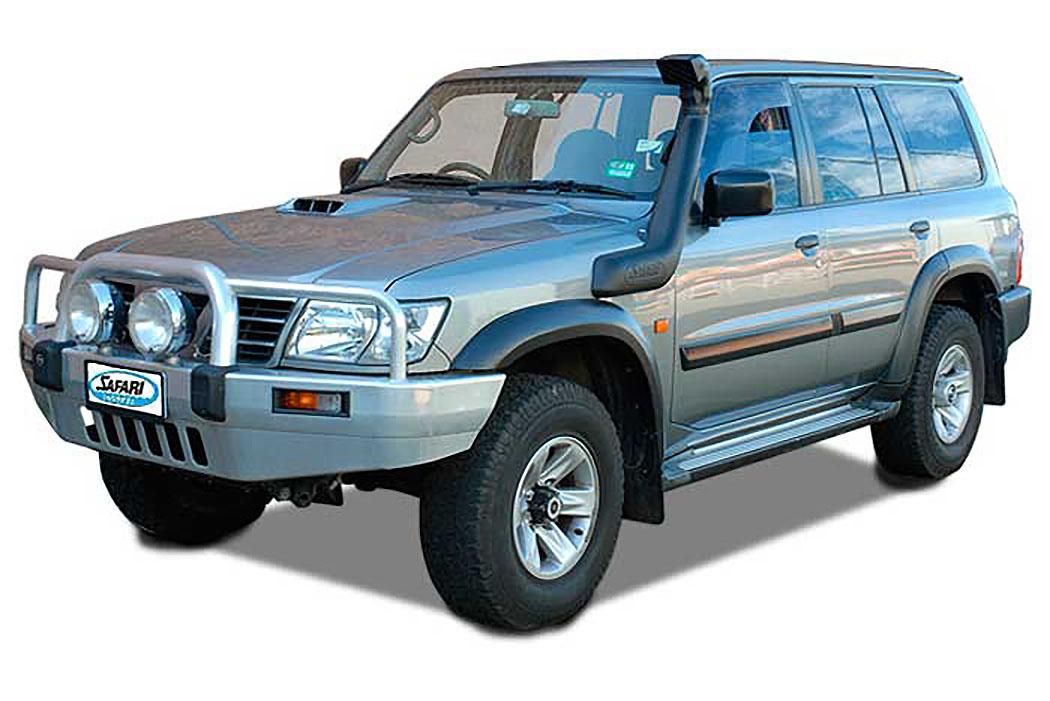

ss16hfb ss16r snorkel nissan gu patrol y61

4X4 SNORKEL for the Nissan GU Patrol (Y61) Series 1 TB45E 4.5L Petrol

Safari Part Number: SS15HFE

Safari Snorkel

The SS15HFE Nissan GU Patrol (Y61) 4x4 Snorkel is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of Series 1 TB45E 4.5L Petrol engines.

With the huge air flow demands of each engine in the Nissan Series 1 TB45E 4.5L Petrol GU Patrol (Y61), Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.

Huge air flow is but one aspect of the ultimate in snorkel Nissan GU Patrol (Y61) design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.

The genuine Safari Nissan GU Patrol (Y61) 4x4 Snorkel body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the Nissan GU Patrol (Y61) snorkel breezes through the toughest off-road conditions on the planet.

V-Spec snorkels are identified with a ‘HF’ at the end of the part number. These snorkels are manufactured in Australia from Safari’s own industrial specification UV stabilized polyethylene material. A life time warranty is included for peace of mind when it comes to your vehicle.

R-Spec snorkels are identified with an ‘R’ at the end of the part number. These snorkels are manufactured in Australia from Safari’s own recreational specification UV stabilized polyethylene material. A five year warranty is included for peace of mind when it comes to your vehicle.

Safari Nissan GU Patrol (Y61) 4x4 Snorkel Features

  • Safari Automotive Australian designed, moulded and manufactured
  • Raised air intake to prevent your engine from ingesting harmful elements
  • Increased airflow for your Series 1 TB45E 4.5L Petrol engine
  • Water separating air ram design to remove water from the air stream
  • Durable and UV stable snorkel and air ram for added strength
  • Comprehensive Nissan GU Patrol (Y61) 4WD Snorkel fitting guide with an accurate template for assisting with installation.

Safari Snorkel Nissan GU Patrol (Y61) 4x4 Kit - Parts List

Nissan GU Patrol (Y61) 4WD Snorkel for Series 1 TB45E 4.5L Petrol Models - Safari Automotive Nissan GU Patrol (Y61) 4x4 Snorkel Part Number SS15HFE

ss16hfb ss16r nissan gu patrol y61 snorkel kit

Actual model not shown.

SS15HFE Parts List

ITEMPART NO.
DESCRIPTION
QTY
1 485-133-500 BODY - SNORKEL (SS15HFB) 1
2 000-135-800 3 ½" AIR RAM ASSEMBLY 1
3 485-032-500 BRACKET - UPPER MOUNTING 1
4 000-002-100 BOLT - HEX - S/S - 6mm x 1.0 x 14mm (SEMS) 2
5 000-951 SCREW - S/T - S/S - 4.2mm x 13mm 3
6 000-960 INSERT - PLASTIC 3
7 000-110 STUD - S/S - 8mm x 1.25 x 25mm 5
8 000-311-300 WASHER - BODY - S/S - 8mm x 32mm 5
9 000-205-300 NUT - NYLOC - S/S - 8mm x 1.25mm 5
10 485-024-000 HOSE - SNORKEL OUTLET 1
11 485-025-000 JOINER - 90mm OD x 60mm Long 1
12 485-024-200 HOSE - AIR CLEANER ENTRY 1
13 485-025-300 JOINER - 90mm OD x 42mm Long 1
14 485-024-600 HOSE - AIR CLEANER INLET 1
15 000-909 CLAMP - HOSE 80/100mm 3
16 000-910 CLAMP - HOSE 90/110mm 2
17 000-1911 CLAMP - HOSE 100/120mm 1
18 000-914/B CLAMP - HOSE - No. 56 (BLACK) 1
19 485-017-500 TEMPLATE – GUARD PANEL 1
