4X4 SNORKEL for the Nissan GQ Patrol (Y60) 01/1988 - 10/1997 TD42 Diesel with horizontal pre cleaner
Safari Part Number: SS13HF-HPC
Safari Snorkel
The SS13HF-HPC Nissan GQ Patrol (Y60) 4x4 Snorkel is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of 01/1988 - 10/1997 TD42 Diesel with horizontal pre cleaner engines.
With the huge air flow demands of each engine in the Nissan 01/1988 - 10/1997 TD42 Diesel with horizontal pre cleaner GQ Patrol (Y60), Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.
Huge air flow is but one aspect of the ultimate in snorkel Nissan GQ Patrol (Y60) design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.
The genuine Safari Nissan GQ Patrol (Y60) 4x4 Snorkel body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the Nissan GQ Patrol (Y60) snorkel breezes through the toughest off-road conditions on the planet.
Safari Nissan GQ Patrol (Y60) 4x4 Snorkel Features
- Safari Automotive Australian designed, moulded and manufactured
- Raised air intake to prevent your engine from ingesting harmful elements
- Increased airflow for your 01/1988 - 10/1997 TD42 Diesel with horizontal pre cleaner engine
- Water separating air ram design to remove water from the air stream
- Durable and UV stable snorkel and air ram for added strength
- Comprehensive Nissan GQ Patrol (Y60) 4WD Snorkel fitting guide with an accurate template for assisting with installation.
Safari Snorkel Nissan GQ Patrol (Y60) 4x4 Kit - Parts List

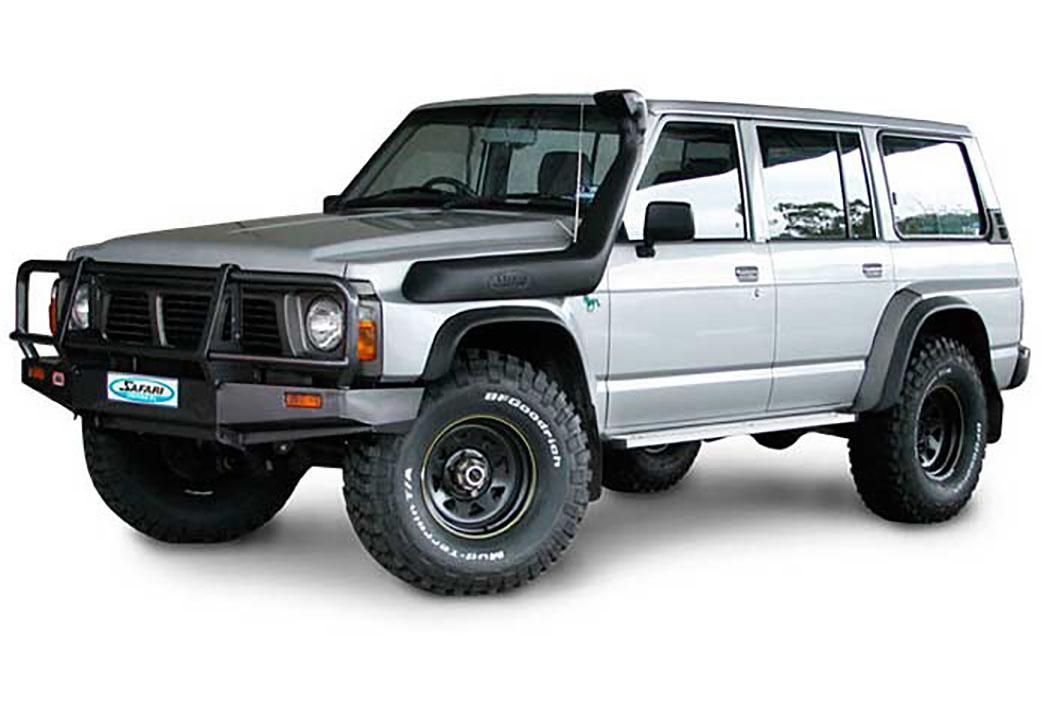

Nissan GQ Patrol (Y60) 4WD Snorkel for 01/1988 - 10/1997 TD42 Diesel with horizontal pre cleaner Models - Safari Automotive Nissan GQ Patrol (Y60) 4x4 Snorkel Part Number SS13HF-HPC
Actual model not shown.
SS13HF-HPC Parts List
| ITEM | PART NO. | DESCRIPTION | QTY |
|---|---|---|---|
| 1 | 470-133-200R | BODY - SNORKEL | 1 |
| 2 | 000-135-800 | 3 ½" AIR RAM ASSEMBLY | 1 |
| 3 | 470-032-200 | BRACKET - UPPER MOUNTING | 1 |
| 4 | 000-002-100 | BOLT - HEX - S/S - 6mm x 1.0 x 14mm (SEMS) | 3 |
| 5 | 000-951-300 | SCREW - S/T - S/S - 4.2mm x 16mm | 3 |
| 6 | 000-960 | INSERT - PLASTIC | 3 |
| 7 | 000-110 | STUD - S/S - 8mm x 1.25 x 25mm | 7 |
| 8 | 000-311-300 | WASHER - BODY - S/S - 8mm x 32mm | 7 |
| 9 | 000-205-300 | NUT - NYLOC - S/S - 8mm x 1.25mm | 7 |
| 10 | 000-887-050 | HOSE - CUFFED - 82mm ID x 500mm | 1 |
| 11 | 000-908 | CLAMP - HOSE - 70/90mm | 7 |
| 12 | 000-434-030 | TAPE - FOAM - 25mm x 300mm | 1 |
| 13 | 470-017-500 | FIXTURE - HOLESAW CENTRE | 1 |
| 14 | 000-914/B | CLAMP - HOSE - No. 56 (BLACK) | 1 |
| 15 | 470-017-200 | TEMPLATE | 1 |
Safari Snorkel Installation Guide
Nissan GQ Patrol (Y60) 01/1988 - 10/1997 TD42 Diesel with horizontal pre cleaner 544.67 KB
