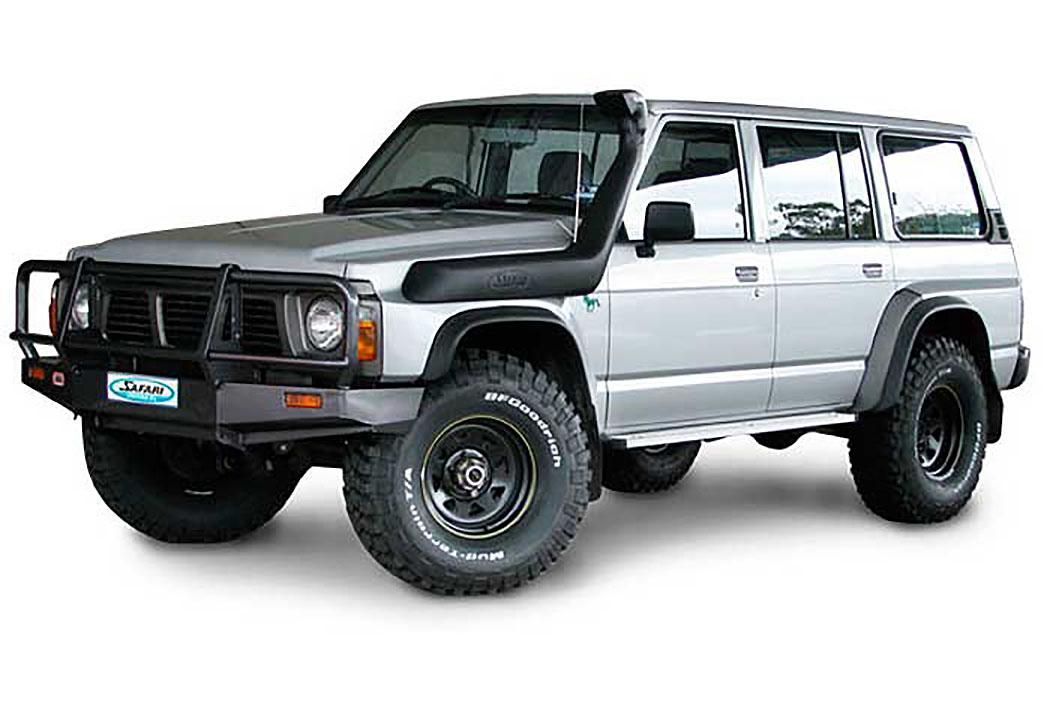

ss13hf hpc ss13r snorkel nissan gq patrol y60

4X4 SNORKEL for the Nissan GQ Patrol (Y60) 01/1988 - 10/1997 TD42 Diesel (Discard pre cleaner option)

Safari Part Number: SS13HF-HPC

Safari Snorkel

The SS13HF-HPC Nissan GQ Patrol (Y60) 4x4 Snorkel is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of 01/1988 - 10/1997 TD42 Diesel (Discard pre cleaner option) engines.

With the huge air flow demands of each engine in the Nissan 01/1988 - 10/1997 TD42 Diesel (Discard pre cleaner option) GQ Patrol (Y60), Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.

Huge air flow is but one aspect of the ultimate in snorkel Nissan GQ Patrol (Y60) design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.

The genuine Safari Nissan GQ Patrol (Y60) 4x4 Snorkel body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the Nissan GQ Patrol (Y60) snorkel breezes through the toughest off-road conditions on the planet.

Safari Nissan GQ Patrol (Y60) 4x4 Snorkel Features

  • Safari Automotive Australian designed, moulded and manufactured
  • Raised air intake to prevent your engine from ingesting harmful elements
  • Increased airflow for your 01/1988 - 10/1997 TD42 Diesel (Discard pre cleaner option) engine
  • Water separating air ram design to remove water from the air stream
  • Durable and UV stable snorkel and air ram for added strength
  • Comprehensive Nissan GQ Patrol (Y60) 4WD Snorkel fitting guide with an accurate template for assisting with installation.

Safari Snorkel Nissan GQ Patrol (Y60) 4x4 Kit - Parts List

Nissan GQ Patrol (Y60) 4WD Snorkel for 01/1988 - 10/1997 TD42 Diesel (Discard pre cleaner option) Models - Safari Automotive Nissan GQ Patrol (Y60) 4x4 Snorkel Part Number SS13HF-HPC

ss13hf hpc ss13r nissan gq patrol y60snorkel kit

Actual model not shown.

SS13HF-HPC Parts List

ITEMPART NO.
DESCRIPTION
QTY
1 470-133-200R BODY - SNORKEL 1
2 000-135-800 3 ½" AIR RAM ASSEMBLY 1
3 470-032-200 BRACKET - UPPER MOUNTING 1
4 000-002-100 BOLT - HEX - S/S - 6mm x 1.0 x 14mm (SEMS) 3
5 000-951-300 SCREW - S/T - S/S - 4.2mm x 16mm 3
6 000-960 INSERT - PLASTIC 3
7 000-110 STUD - S/S - 8mm x 1.25 x 25mm 7
8 000-311-300 WASHER - BODY - S/S - 8mm x 32mm 7
9 000-205-300 NUT - NYLOC - S/S - 8mm x 1.25mm 7
10 000-887-050 HOSE - CUFFED - 82mm ID x 500mm 1
11 000-908 CLAMP - HOSE - 70/90mm 7
12 000-434-030 TAPE - FOAM - 25mm x 300mm 1
13 470-017-500 FIXTURE - HOLESAW CENTRE 1
14 000-914/B CLAMP - HOSE - No. 56 (BLACK) 1
15 470-017-200 TEMPLATE 1
