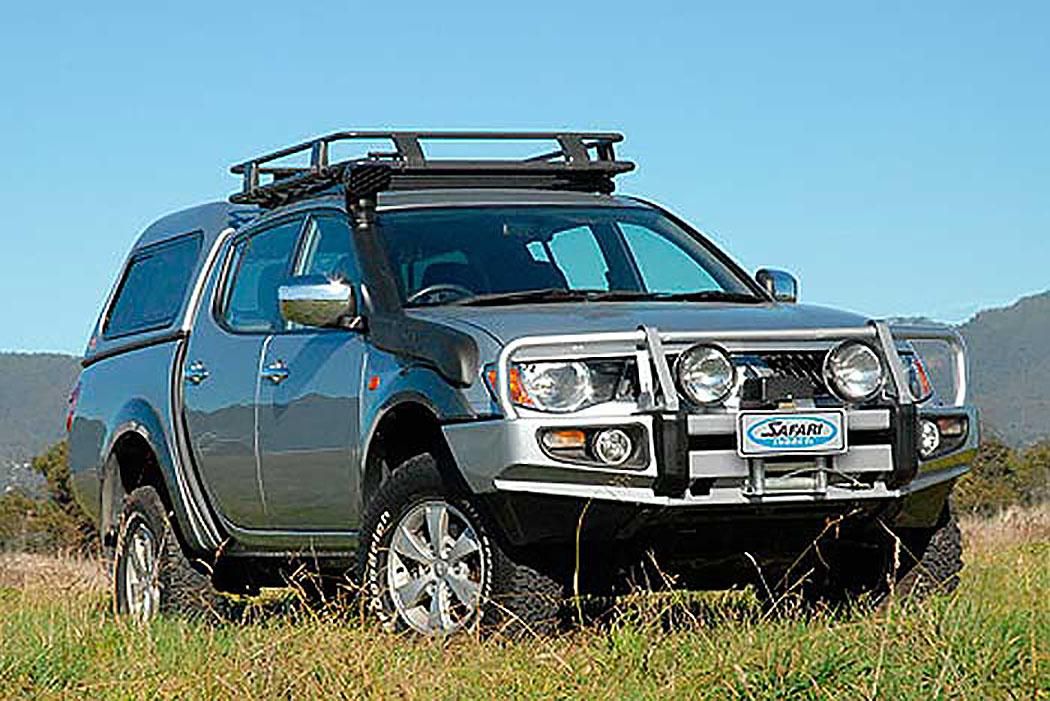

ss661hf snorkel mitsubishi triton

4X4 SNORKEL for the Mitsubishi Triton MN 2.5L Diesel

Safari Part Number: SS661HF

Safari Snorkel

The SS661HF Mitsubishi Triton 4x4 Snorkel is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of MN 2.5L Diesel engines.

With the huge air flow demands of each engine in the Mitsubishi MN 2.5L Diesel Triton, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.

Huge air flow is but one aspect of the ultimate in snorkel Mitsubishi Triton design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.

The genuine Safari Mitsubishi Triton 4x4 Snorkel body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the Mitsubishi Triton snorkel breezes through the toughest off-road conditions on the planet.

*EXCEPT Models fitted with HID Headlamps

Safari Mitsubishi Triton 4x4 Snorkel Features

  • Safari Automotive Australian designed, moulded and manufactured
  • Raised air intake to prevent your engine from ingesting harmful elements
  • Increased airflow for your MN 2.5L Diesel engine
  • Water separating air ram design to remove water from the air stream
  • Durable and UV stable snorkel and air ram for added strength
  • Comprehensive Mitsubishi Triton 4WD Snorkel fitting guide with an accurate template for assisting with installation.

Safari Snorkel Mitsubishi Triton 4x4 Kit - Parts List

Mitsubishi Triton 4WD Snorkel for MN 2.5L Diesel Models - Safari Automotive Mitsubishi Triton 4x4 Snorkel Part Number SS661HF

*EXCEPT Models fitted with HID Headlamps

ss661hf mitsubishi triton snorkel kit

Actual model not shown.

ITEMPART NO.
DESCRIPTION
QTY
1 525-133-000 BODY - SNORKEL (SS660HF) 1
2 000-135-800 3 ½" AIR RAM ASSEMBLY 1
3 525-032-000 BRACKET - UPPER MOUNTING 1
4 000-002-100 BOLT - HEX - 6mm x 1.0 x 14mm (SEMS) 3
5 000-951 SCREW - S/T - 4.2mm x 13mm 3
6 000-960 INSERT - PLASTIC 3
7 000-110 STUD - S/S - 8mm x 1.25 x 25mm O/L 8
8 000-352 WASHER - BODY - 8mm x 45mm - S/S 4
9 000-311-300 WASHER - BODY - 8.5mm x 32mm - S/S 4
10 000-205-300 NUT - NYLOC - 8mm x 1.25 - S/S 8
11 525-024-200 HOSE - AIR ENTRY 1
12 525-023-200 ADAPTOR - AIR CLEANER 1
13 000-958-300 POP RIVET - 4.8mm x 12mm 3
14 000-909 CLAMP - HOSE - 80/100mm 2
15 525-098-200 BOTTLE - RADIATOR OVERFLOW - PLASTIC 1
16 525-098-300 CAP - OVERFLOW BOTTLE - 38mm ID - WHITE 1
17 525-096-000 BRACKET - OVERFLOW BOTTLE MOUNTING 2
18 000-1018-300 BOLT - B/H - 5mm x 0.8 x 8mm - S/S 2
19 000-951-500 SCREW - S/T - 4.8mm x 16mm 2
20 000-917-100 CLAMP - SPRING - 5/16" 1
21 000-530 ADAPTOR - HOSE - 8mm/8mm 1
22 000-838-035 HOSE - RADIATOR OVERFLOW EXTENSION 1
23 000-987-100 CABLE TIE - 2.5mm x 100mm 3
24 000-914/B CLAMP - HOSE - SIZE 56 (BLACK) 1
25 525-017-000 TEMPLATE - SNORKEL BODY 1

Safari Snorkel Installation Guide

picture_as_pdfMitsubishi Triton MN 2.5L Diesel 842.62 KB
