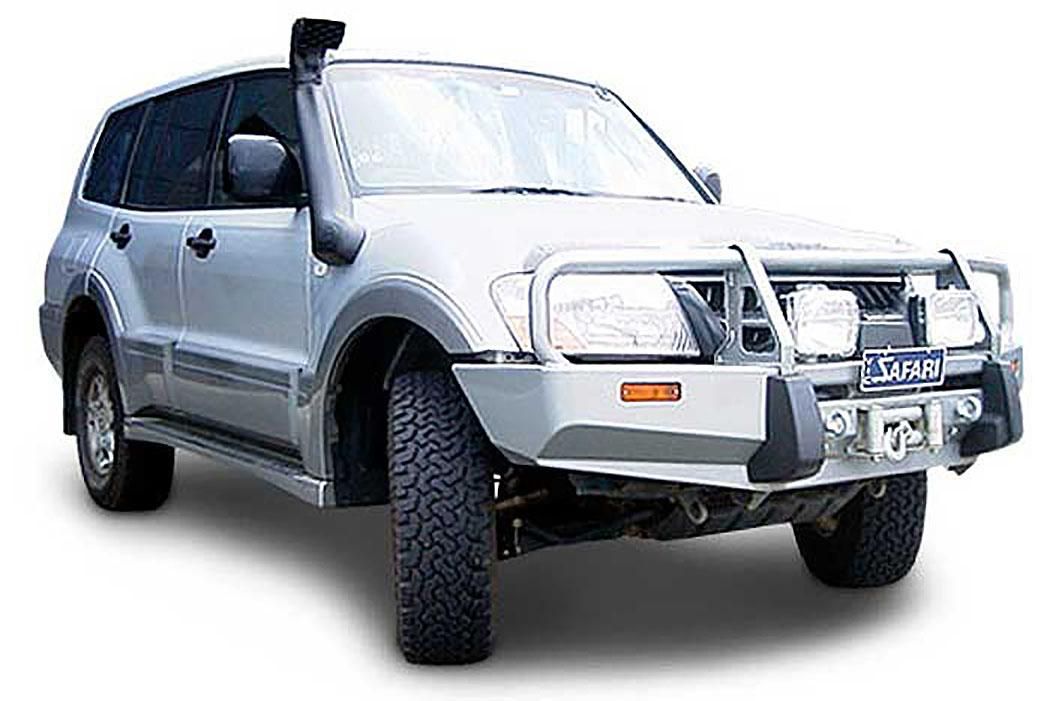

4X4 SNORKEL for the Mitsubishi Pajero NM
Safari Part Number: SS35HF
Safari Snorkel
Suits 6G74 & 4M41-T Engines
The SS35HF Mitsubishi Pajero 4x4 Snorkel is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of NM engines.
With the huge air flow demands of each engine in the Mitsubishi NM Pajero, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.
Huge air flow is but one aspect of the ultimate in snorkel Mitsubishi Pajero design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.
The genuine Safari Mitsubishi Pajero 4x4 Snorkel body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the Mitsubishi Pajero snorkel breezes through the toughest off-road conditions on the planet.
Safari Mitsubishi Pajero 4x4 Snorkel Features
- Safari Automotive Australian designed, moulded and manufactured
- Raised air intake to prevent your engine from ingesting harmful elements
- Increased airflow for your Pajero NM engine
- Water separating air ram design to remove water from the air stream
- Durable and UV stable snorkel and air ram for added strength
- Comprehensive Mitsubishi Pajero 4WD Snorkel fitting guide with an accurate template for assisting with installation.
Safari Snorkel Mitsubishi Pajero 4x4 Kit - Parts List
Mitsubishi Pajero 4WD Snorkel for NM Models - Safari Automotive Mitsubishi Pajero 4x4 Snorkel Part Number SS35HF
| ITEM | PART NO. | DESCRIPTION | QTY |
|---|---|---|---|
| 1 | 565-133-000R | BODY – SNORKEL | 1 |
| 2 | 000-135-800 | 3½” AIR RAM ASSEMBLY | 1 |
| 3 | 565-124-000 | DUCT – INNER | 1 |
| 4 | 565-123-000 | DUCT - AIR CLEANER ENTRY | 1 |
| 5 | 565-032-000 | BRACKET - UPPER MOUNTING | 1 |
| 6 | 000-002-100 | BOLT – HEX 6mm x 1.0mm x 14mm | 2 |
| 7 | 000-951 | SCREW - S/T 4.2mm x 13mm – S/S | 6 |
| 8 | 000-960 | INSERT - PLASTIC | 3 |
| 9 | 000-110 | STUD - S/S 8m x 1.25mm x 25mm O/L | 3 |
| 10 | 000-311-300 | WASHER - BODY 8mm x 30mm –S/S | 3 |
| 11 | 000-205-300 | NUT - NYLOC 8mm x 1.25mm _ S/S | 3 |
| 12 | 000-807-157E | HOSE - RUBBER 90mmID x 40mm | 1 |
| 13 | 000-909 | CLAMP - HOSE 80/100mm | 2 |
| 14 | 565-031-000 | BRACKET - AIR CLEANER RELOCATION | 1 |
| 15 | 565-031-100 | BRACKET - AIR CLEANER RELOCATION | 1 |
| 16 | 000-335 | WASHER - BODY 8mm x 24mm x 3mm | 3 |
| 17 | 000-003-100 | BOLT - HEX 6mm x 1.0mm x 20mm (SEMS) | 3 |
| 18 | 000-958-400 | POP RIVET 4.8mm x 21mm | 1 |
| 19 | 000-953-040 | EDGING - RUBBER 400mm | 1 |
| 20 | 000-987-178 | CABLE TIE - 178mm | 3 |
| 21 | 565-017-100 | FIXTURE - HOLESAW CENTRE | 1 |
| 22 | 565-017-000 | TEMPLATE | 1 |
| 23 | 000-914/B | HOSE CLAMP - SIZE 56 (BLACK) | 1 |
