4X4 SNORKEL for the Mitsubishi Pajero NA 2.5L Diesel

Safari Part Number: SS20HF

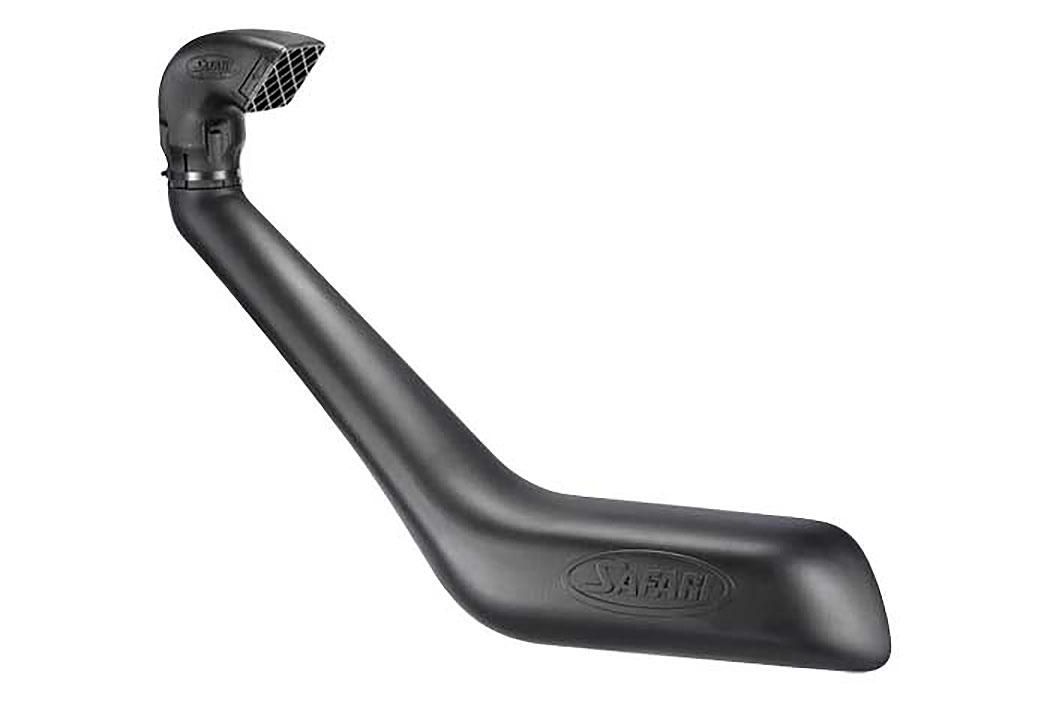

Safari Snorkel

The SS20HF Mitsubishi Pajero 4x4 Snorkel is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of NA 2.5L Diesel engines.

With the huge air flow demands of each engine in the Mitsubishi NA 2.5L Diesel Pajero, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.

Huge air flow is but one aspect of the ultimate in snorkel Mitsubishi Pajero design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.

The genuine Safari Mitsubishi Pajero 4x4 Snorkel body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the Mitsubishi Pajero snorkel breezes through the toughest off-road conditions on the planet.

Safari Mitsubishi Pajero 4x4 Snorkel Features

  • Safari Automotive Australian designed, moulded and manufactured
  • Raised air intake to prevent your engine from ingesting harmful elements
  • Increased airflow for your Pajero NA 2.5L Diesel engine
  • Water separating air ram design to remove water from the air stream
  • Durable and UV stable snorkel and air ram for added strength
  • Comprehensive Mercedes Sprinter 4WD Snorkel fitting guide with an accurate template for assisting with installation.

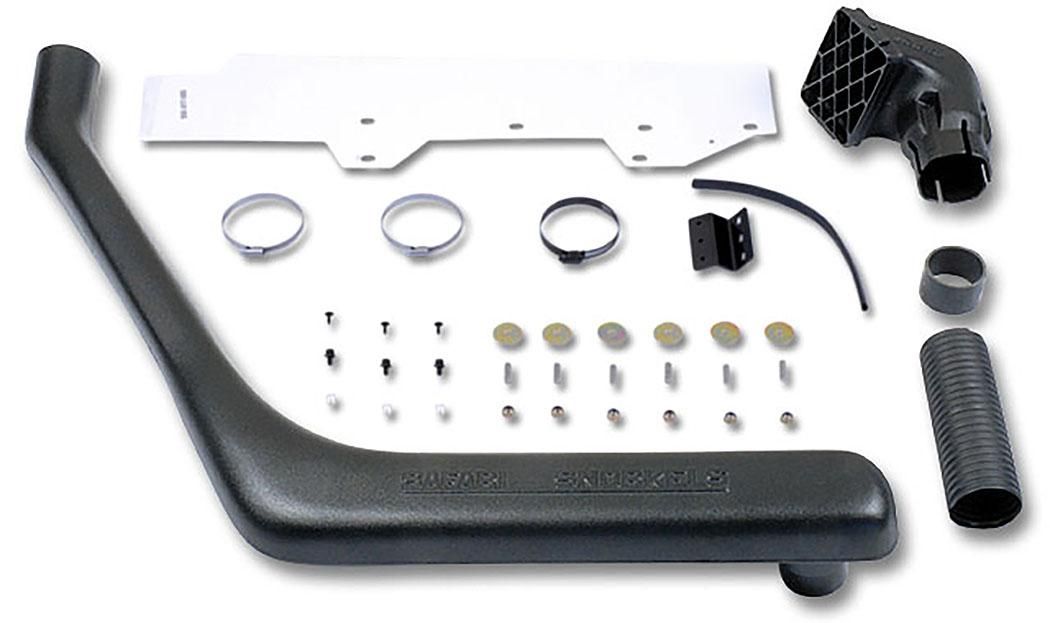

Safari Snorkel Mitsubishi Pajero 4x4 Kit - Parts List

Mitsubishi Pajero 4WD Snorkel for NA 2.5L Diesel Models - Safari Automotive Mitsubishi Pajero 4x4 Snorkel Part Number SS20HF

ss20r mitsubishi pajero snorkel kit

ITEMPART NO.
DESCRIPTION
QTY
1 550-133-000R BODY - SNORKEL 1
2 000-135-050 3" AIR RAM ASSEMBLY 1
3 000-908 CLAMP - HOSE - 70/90mm 2
4 000-883-020 DUCTING – 65mm ID x 200mm 1
5 000-110 STUD - 8mm x 1.25mm - O/L 6
6 000-311-300 WASHER - BODY - 8mm x 30mm 6
7 000-205-300 NUT - NYLOC - 8mm x 1.25 6
8 000-960 CLIP - BODY - PLASTIC 3
9 550-032-000 BRACKET - UPPER MOUNTING 1
10 000-951 SCREW - S/T - 4.2mm x 13mm 3
11 000-002-100 BOLT - HEX - 6mm x 1.0mm x12mm 3
12 000-953-030 EDGING - RUBBER - 300mm 1
13 550-017-000 TEMPLATE 1
14 000-800-162E HOSE - SILICON – 60mm ID x 25mm 1
15 000-918/B HOSE CLAMP - SIZE 48 (BLACK) 1

Safari Snorkel Installation Guide

picture_as_pdfSS20HF Mitsubishi Pajero NA 2.5L Diesel 395.51 KB
