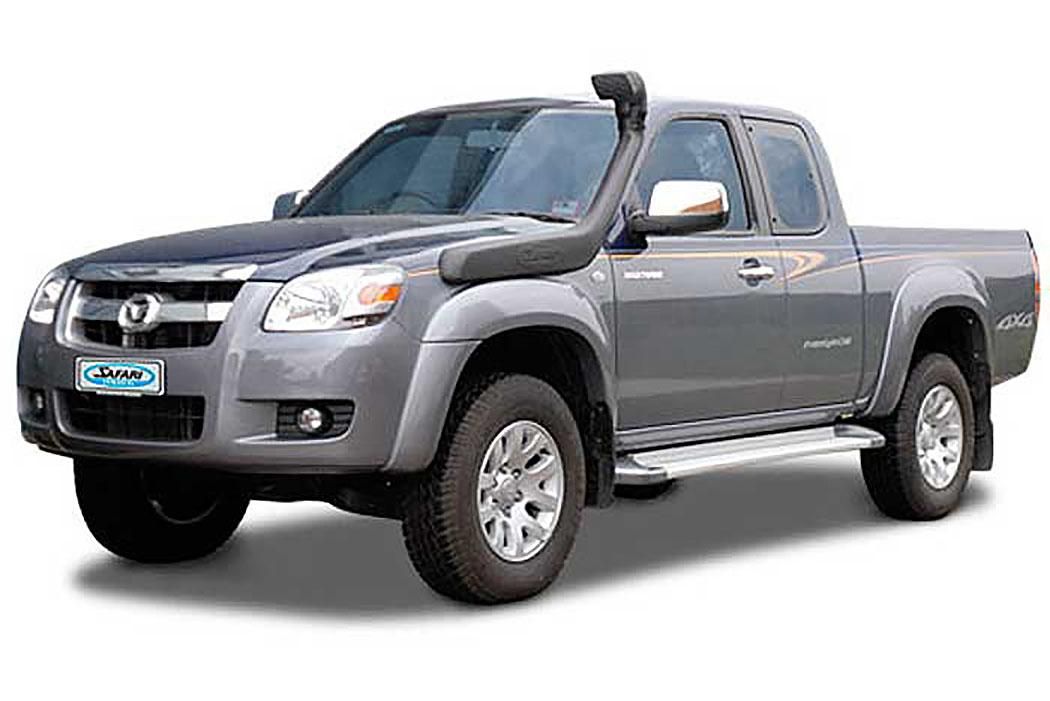

ss965r snorkel mazda bt 50

4X4 SNORKEL for the Mazda BT-50 01/2007 - 2011 3.0L Diesel

Safari Part Number: SS965HF

Safari Snorkel

The SS965HF Mazda BT-50 4x4 Snorkel is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of 01/2007 - 2011 3.0L Diesel engines.

With the huge air flow demands of each engine in the Mazda 01/2007 - 2011 3.0L Diesel BT-50, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.

Huge air flow is but one aspect of the ultimate in snorkel Mazda BT-50 design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.

The genuine Safari Mazda BT-50 4x4 Snorkel body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the Mazda BT-50 snorkel breezes through the toughest off-road conditions on the planet.

Safari Mazda BT-50 4x4 Snorkel Features

  • Safari Automotive Australian designed, moulded and manufactured
  • Raised air intake to prevent your engine from ingesting harmful elements
  • Increased airflow for your 01/2007 - 2011 3.0L Diesel engine
  • Water separating air ram design to remove water from the air stream
  • Durable and UV stable snorkel and air ram for added strength
  • Comprehensive Mazda BT-50 4WD Snorkel fitting guide with an accurate template for assisting with installation.

Safari Snorkel Mazda BT-50 4x4 Kit - Parts List

Mazda BT-50 4WD Snorkel for 01/2007 - 2011 3.0L Diesel Models - Safari Automotive Mazda BT-50 4x4 Snorkel Part Number SS965HF

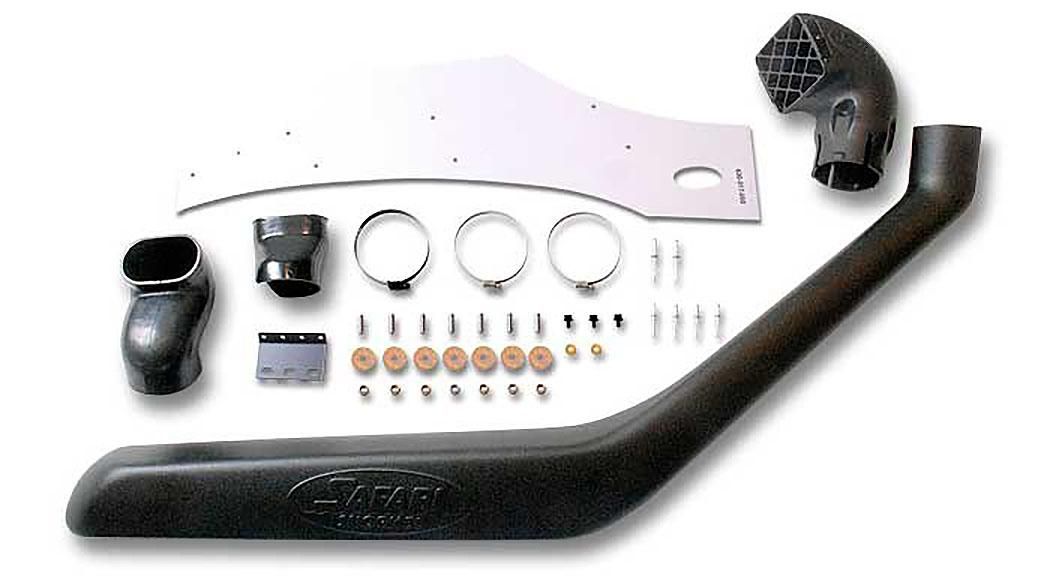

ss965r mazda bt 50 snorkel kit

Actual model not shown.

ITEMPART NO.
DESCRIPTION
QTY
1 630-133-000R BODY - SNORKEL 1
2 000-135-650 3 1/2" AIR RAM ASSEMBLY 1
3 630-024-000 HOSE - AIR ENTRY 1
4 630-023-000 ADAPTOR - AIR CLEANER 1
5 630-032-000 BRACKET - UPPER MOUNTING 1
6 000-958-300 POP RIVET - 4.8mm x 12mm 4
7 000-002-100 BOLT - HEX - 6mm x 1.0 x 14mm (SEMS) 3
8 000-110 STUD - S/S - 8mm x 1.25 x 25mm - O/L 7
9 000-311-300 WASHER - BODY - 8mm x 30mm 7
10 000-205-300 NUT - NYLOC - 8mm x 1.25mm 7
11 000-958-400 POP RIVET - 4.8mm x 21mm 2
12 000-909 CLAMP - HOSE - 80/100mm 2
13 000-310 WASHER - BODY 6mm x 16mm 2
14 000-914/B HOSE CLAMP - SIZE 56 (BLACK) 1
15 630-017-000 TEMPLATE 1

Safari Snorkel - Mazda BT-50 4x4 Snorkels for BT-50 01/2007 - 2011 3.0L Diesel Models
