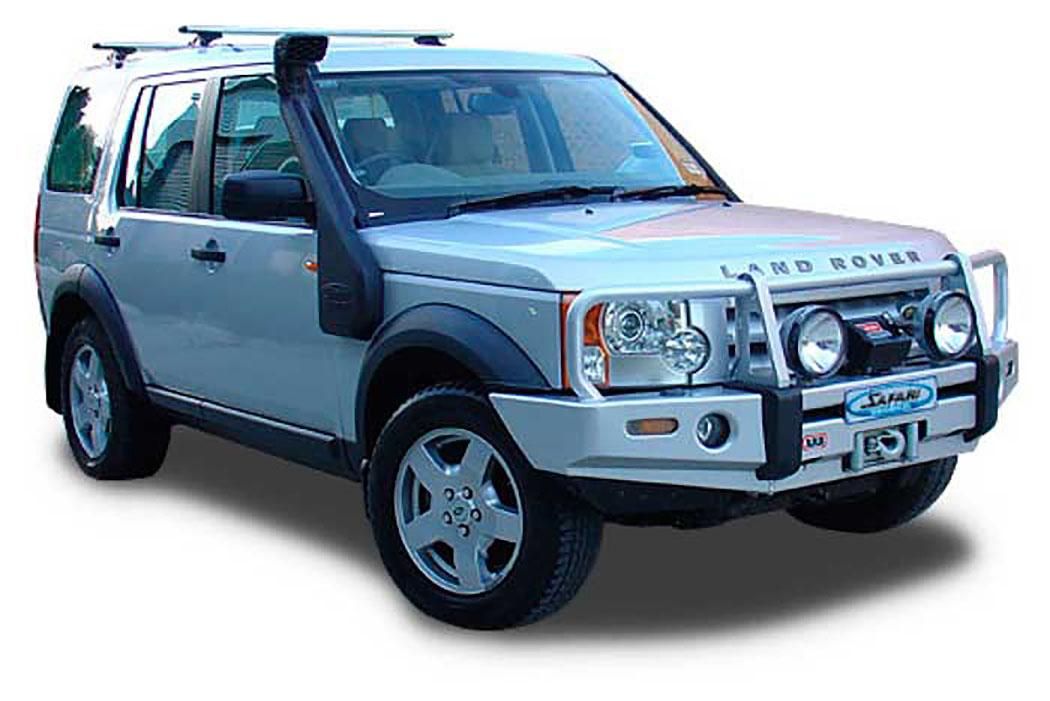

ss385hf snorkel land rover discovery 3

44X4 SNORKEL for the Land Rover Discovery 3 2006 - 09/2009 2.7L Diesel

Safari Part Number: SS385HF

Safari Snorkel

The SS385HF Land Rover Discovery 3 4x4 Snorkel is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of 2006 - 09/2009 2.7L Diesel engines.

With the huge air flow demands of each engine in the Land Rover 2006 - 09/2009 2.7L Diesel Discovery 3, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.

Huge air flow is but one aspect of the ultimate in snorkel Land Rover Discovery 3 design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.

The genuine Safari Land Rover Discovery 3 4x4 Snorkel body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the Land Rover Discovery 3 snorkel breezes through the toughest off-road conditions on the planet.

Safari Land Rover Discovery 3 4x4 Snorkel Features

  • Safari Automotive Australian designed, moulded and manufactured
  • Raised air intake to prevent your engine from ingesting harmful elements
  • Increased airflow for your 2006 - 09/2009 2.7L Diesel engine
  • Water separating air ram design to remove water from the air stream
  • Durable and UV stable snorkel and air ram for added strength
  • Comprehensive Land Rover Discovery 3 4WD Snorkel fitting guide with an accurate template for assisting with installation.

Safari Snorkel Land Rover Discovery 3 4x4 Kit - Parts List

Land Rover Discovery 3 4WD Snorkel for 2006 - 09/2009 2.7L Diesel Models - Safari Automotive Land Rover Discovery 3 4x4 Snorkel Part Number SS385HF

ss385hf land rover discovery 3 snorkel kit

Actual model not shown.

ITEMPART NO.
DESCRIPTION
QTY
1 830-133-800 BODY – SNORKEL 1
2 000-135-800 3½” AIR RAM ASSEMBLY 1
3 830-032-800 BRACKET - UPPER MOUNTING 1
4 000-002-100 BOLT - HEX - 6mm x 1.0 x 14mm (SEMS) 3
5 000-958-350 POP RIVET – 4.8mm x 14mm 8
6 000-110 STUD – S/S - 8mm x 1.25 x 25mm O/L 2
7 000-311 WASHER - BODY - 8mm x 30mm 2
8 000-205 NUT - NYLOC - 8mm x 1.25mm 2
9 000-108 STUD – S/S 6mm x 1.0 x 25mm OL 3
10 000-321 WASHER - BODY - 6mm x 20mm 3
11 000-204 NUT - NYLOC - 6mm x 1.0mm 3
12 830-023-800 DUCT – CONNECTING 1
13 000-887-075 CUFFED HOSE – 82mm ID x 750mm 1
14 000-909 CLAMP HOSE – 80/100mm 2
15 830-410-800 SEAL – FOAM 1
16 830-017-800 TEMPLATE – GUARD PANEL 1
17 830-217-800 TEMPLATE – INNER GUARD 1
18 830-217-825 TEMPLATE – MOUNTING BRACKET 1
19 830-217-850 TEMPLATE – ‘A’ PILLAR TRIM 1
20 000-914/B HOSE – CLAMP – SIZE 56 (BLACK) 1
