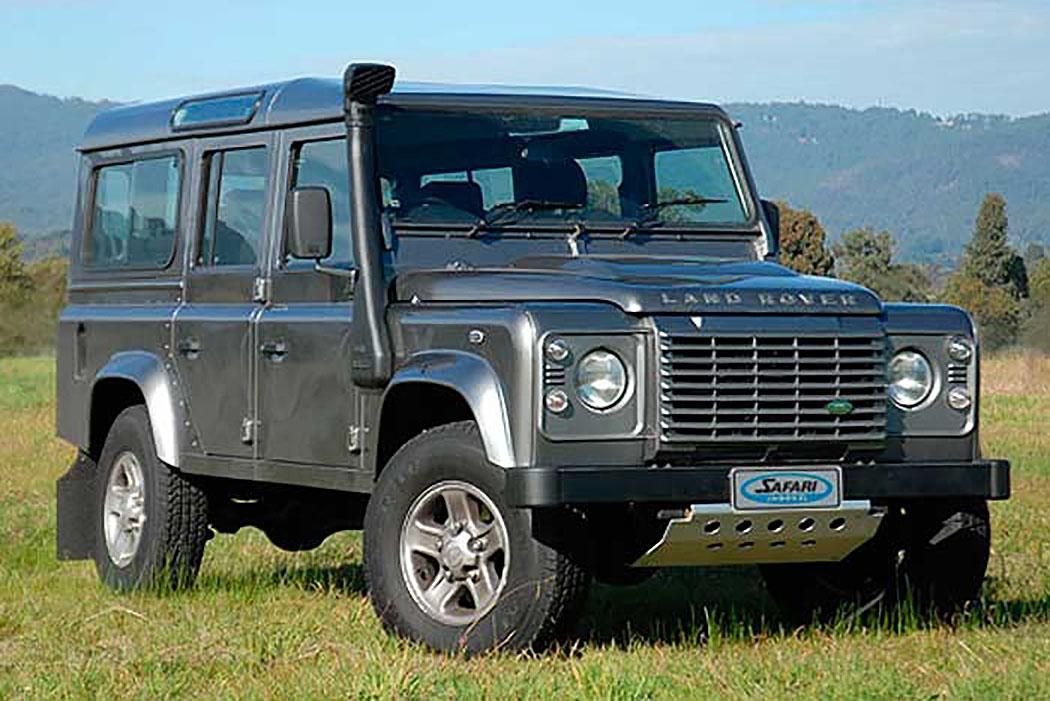

ss580hf snorkel land rover defender td5

4X4 SNORKEL for the Land Rover Defender TD5 1999 Onwards 2.5L Diesel

Safari Part Number: SS580HF

Safari Snorkel

The SS580HF Land Rover Defender TD5 4x4 Snorkel is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of 1999 Onwards 2.5L & 2.2L Diesel engines.

With the huge air flow demands of each engine in the Land Rover 1999 Onwards 2.5L & 2.2L Diesel Defender TD5, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.

Huge air flow is but one aspect of the ultimate in snorkel Land Rover Defender TD5 design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.

The genuine Safari Land Rover Defender TD5 4x4 Snorkel body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the Land Rover Defender TD5 snorkel breezes through the toughest off-road conditions on the planet.

Safari Land Rover Defender TD5 4x4 Snorkel Features

  • Safari Automotive Australian designed, moulded and manufactured
  • Raised air intake to prevent your engine from ingesting harmful elements
  • Increased airflow for your 1999 Onwards 2.5L & 2.2L Diesel engines
  • Water separating air ram design to remove water from the air stream
  • Durable and UV stable snorkel and air ram for added strength
  • Comprehensive Land Rover Defender TD5 4WD Snorkel fitting guide with an accurate template for assisting with installation.

Safari Snorkel Land Rover Defender TD5 4x4 Kit - Parts List

Land Rover Defender TD5 4WD Snorkel for 1999 Onwards 2.5L & 2.2L Diesel Models - Safari Automotive Land Rover Defender TD5 4x4 Snorkel Part Number SS580HF

ss580hf land rover defender td5 snorkel kit

Actual model not shown.

ITEMPART NO.
DESCRIPTION
QTY
1 810-133-500R BODY - SNORKEL 1
2 000-135-650 3 ½” AIR RAM ASSEMBLY 1
3 810-032-200 BRACKET - UPPER MOUNTING 1
4 810-435-200 GASKET - UPPER MOUNTING BRACKET 1
5 000-002-100 BOLT - HEX - 6mm x 1.0 x 14mm 3
6 000-110 STUD - S/S - 8mm x 1.25 x 25m 3
7 000-311-300 WASHER - BODY - S/S - 8mm x 30mm 3
8 000-205-300 NUT - NYLOC - S/S - 8mm x 1.25mm 3
9 000-951 SCREW - S/T - 4.2mm x 13mm 4
10 000-958-500 POP RIVET - 4.8mm x 15.75mm 6
11 810-016-500 GASKET - FOAM BODY - SELF ADHESIVE 1
12 810-017-500 TEMPLATE 1
13 810-016-400 GASKET - SEALING 1
14 000-914/B HOSE CLAMP - SIZE 56 (BLACK) 1

Safari Snorkel - Land Rover Defender TD5 Snorkels for 1999 Onwards 2.5L Diesel
