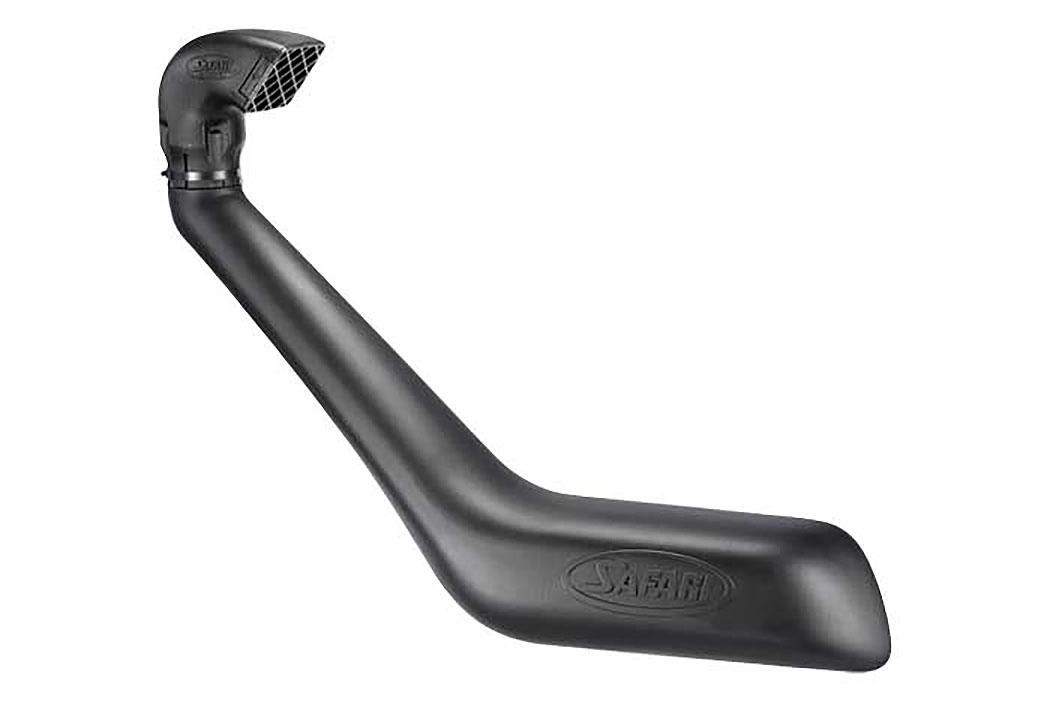

4X4 SNORKEL for the GM/Isuzu Rodeo/Campo RA 01/2003 - 12/2006 3.0L Diesel
Safari Part Number: SS160HF
Safari Snorkel
The SS160HF GM/Isuzu Rodeo/Campo Snorkel is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of RA 01/2003 - 12/2006 3.0L Diesel engines.
With the huge air flow demands of each engine in the GM/Isuzu RA 01/2003 - 12/2006 3.0L Diesel Rodeo/Campo, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.
Huge air flow is but one aspect of the ultimate in snorkel GM/Isuzu Rodeo/Campo design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.
The genuine Safari GM/Isuzu Rodeo/Campo 4x4 Snorkel body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the GM/Isuzu Rodeo/Campo snorkel breezes through the toughest off-road conditions on the planet.
Safari GM/Isuzu Rodeo/Campo 4x4 Snorkel Features
- Safari Automotive Australian designed, moulded and manufactured
- Raised air intake to prevent your engine from ingesting harmful elements
- Increased airflow for your RA 01/2003 - 12/2006 3.0L Diesel engine
- Water separating air ram design to remove water from the air stream
- Durable and UV stable snorkel and air ram for added strength
- Comprehensive GM/Isuzu Rodeo/Campo 4WD Snorkel fitting guide with an accurate template for assisting with installation.

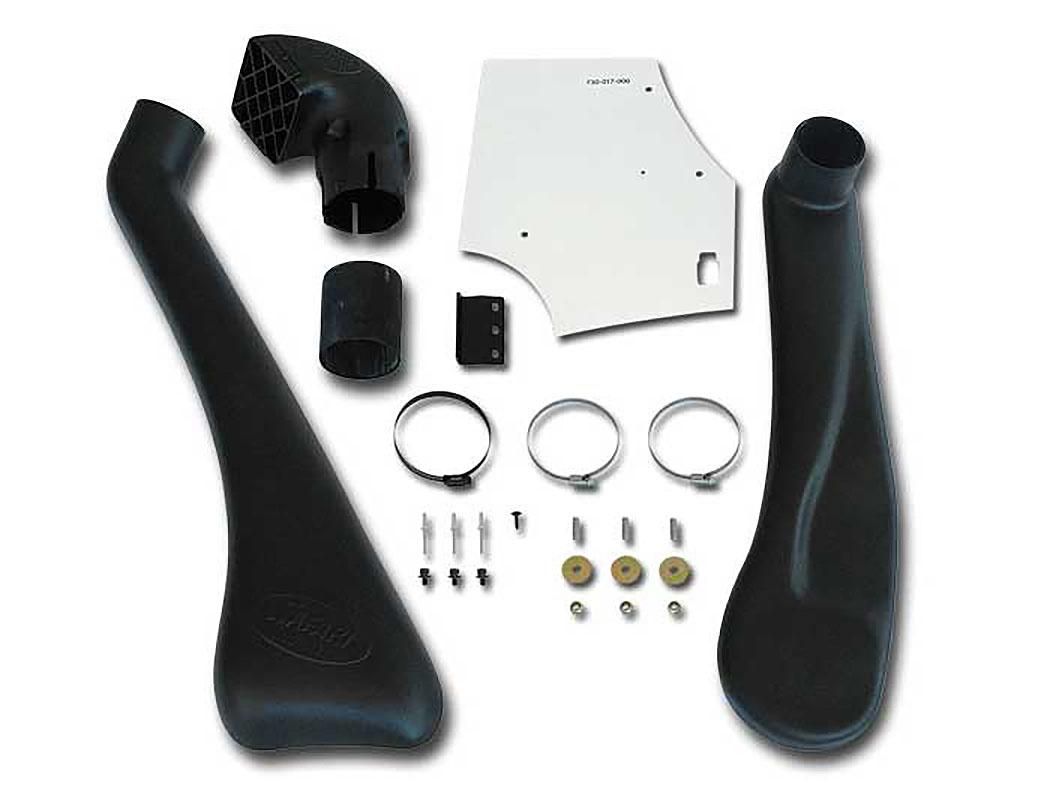

Safari Snorkel GM/Isuzu Rodeo/Campo 4x4 Kit - Parts List
GM/Isuzu Rodeo/Campo 4WD Snorkel for RA 01/2003 - 12/2006 3.0L Diesel Models - Safari Automotive GM/Isuzu Rodeo/Campo 4x4 Snorkel Part Number SS160HF
| ITEM | PART NO. | DESCRIPTION | QTY |
|---|---|---|---|
| 1 | 730-133-000R | BODY - SNORKEL | 1 |
| 2 | 000-135-650 | 3½” AIR RAM ASSEMBLY | 1 |
| 3 | 730-124-000 | DUCT - INNER | 1 |
| 4 | 730-032-000 | BRACKET - UPPER MOUNTING | 1 |
| 5 | 000-002-100 | BOLT - HEX 6mm x 1.0mm x 14mm | 3 |
| 6 | 000-958-350 | POP RIVET - 4.8mm x 14mm | 3 |
| 7 | 000-951-300 | SCREW - S/T 4.2mm x 16mm | 1 |
| 8 | 000-110 | STUD - S/S 8m x 1.25mm x 25mm O/L | 3 |
| 9 | 000-311-300 | WASHER – BODY 8mm x 30mm | 3 |
| 10 | 000-205-300 | NUT - NYLOC 8mm x 1.25mm | 3 |
| 11 | 000-806-400 | HOSE – RUBBER 82mm ID x 105mm | 1 |
| 12 | 000-909 | CLAMP – HOSE 80/100mm | 2 |
| 13 | 730-017-000 | TEMPLATE | 1 |
| 14 | 000-914/B | HOSE - CLAMP - SIZE 56 (BLACK) | 1 |
Safari Snorkel Installation Guide
GM/Isuzu Rodeo/Campo RA 01/2003 - 12/2006 3.0L Diesel 301.02 KB
